Repair Procedures: Reassembly
WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.
- Install the insulator, spring pad, coil spring and dust cover from the strut assembly.

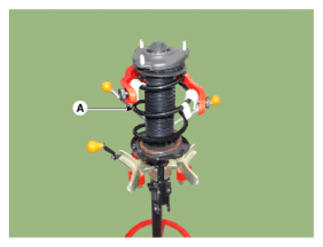

- Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.

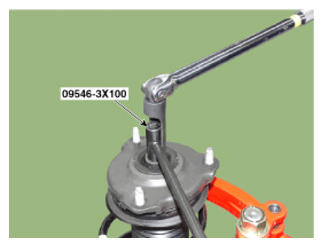

- Using the special tool (09546-3X100), install the self locking nut.NOTE:
- Do not reuse the self locking nut.
Tightening Torque:
98.0 - 107.8 N.m (10.0 - 11.0 kgf.m, 72.3 - 79.6 lb-ft)
