Extended Rear View Monitor Camera Setting (PS755)

Publication date: 2023-12-12
Reference number: PS755

EXTENDED REAR VIEW MONITOR CAMERA SETTING

TECHNICAL SERVICE BULLETIN

Reference Number(s): PS755, Date of Issue: December 12, 2023

KIA:	2020 Multiple Models w/AVN5.0W or Display Audio 2.0V
GROUP:	General

SERVICE INFORMATION

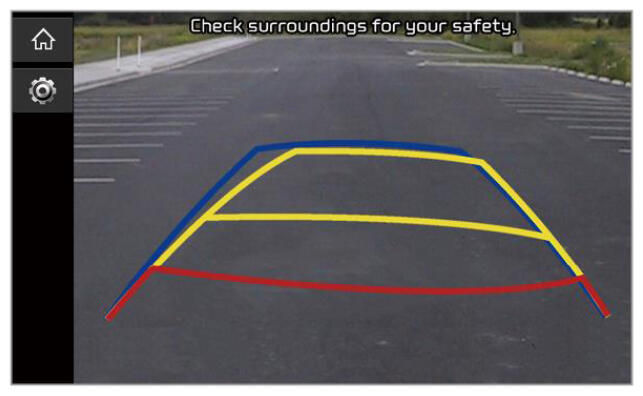

This Pitstop provides information regarding the extended rear view monitor camera feature on all Kia vehicles equipped with AVN5.0Wide and Display Audio 2.0Value head units. Some customers may have concerns that the back-up image is displayed for too long when the vehicles gear is switched from reverse 'R' to neutral 'N' or drive 'D'. The extended rear view monitor camera feature will display the back-up image on the AVN/Display Audio screen when the gear is shifted from reverse 'R' to neutral 'N' or drive 'D' and will turn off when the vehicle speed is above 6MPH (10KM/H). Follow the procedure outlined below to enable/disable the extended rear view monitor feature. When the feature is disabled, the back-up image will only be displayed while the vehicle is in reverse 'R'.

AVN5.0WIDE

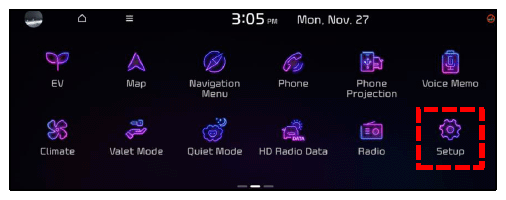

Select 'Setup'.

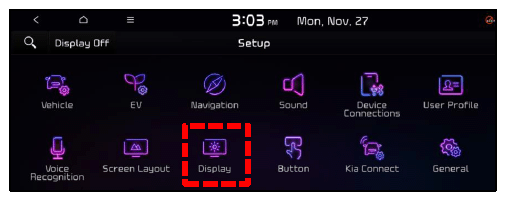

Select 'Display'.

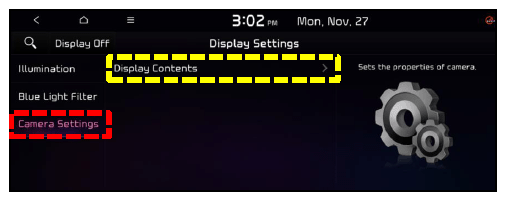

Select 'Camera Settings'.
Select 'Display Contents'.

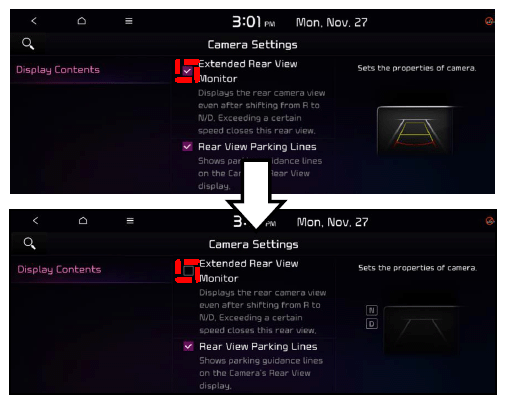

Select 'Extended Rear View Monitor' check box to disable/enable feature.

DISPLAY AUDIO 2.0VALUE

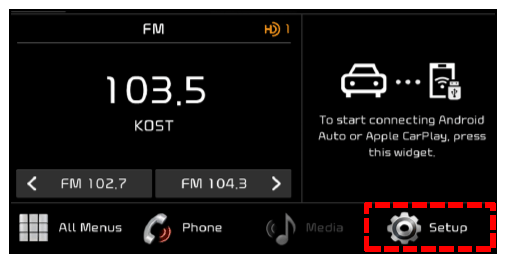

Select 'Setup'.

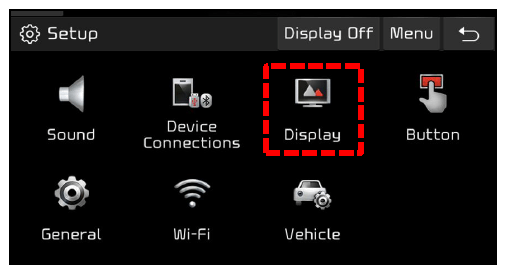

Select 'Display'.

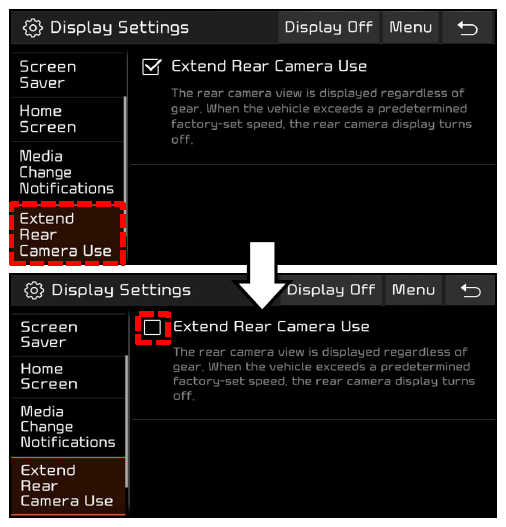

On the left, scroll down and select 'Extended Rear Camera Use'.
Select 'Extended Rear Camera Use' check box to disable/enable feature.
