Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")

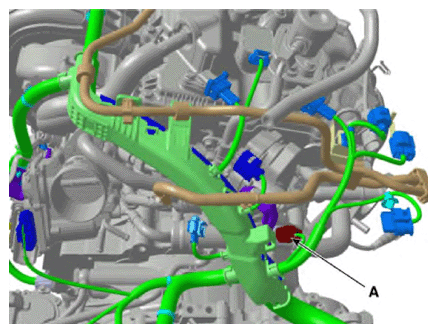

Disconnect the engine coolant temperature sensor connector (A) and then remove the sensor.

Courtesy of KIA MOTORS AMERICA, INC.
Supplement the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
