Home › Kia › 2020 › Optima Hybrid EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (HEV) › Mass Air Flow Sensor (MAFS) › Repair Procedures › Removal

Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.

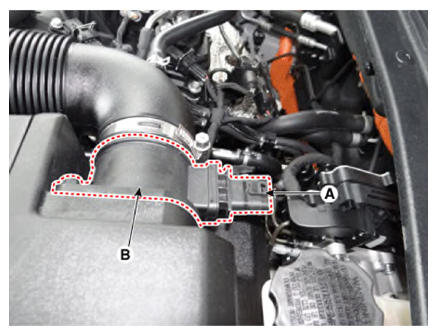

  2. Disconnect the mass air flow sensor connector (A) and the installation clamp (B).
  3. Remove the mass air flow sensor (C).
    G13388053Courtesy of KIA MOTORS AMERICA, INC.
