FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

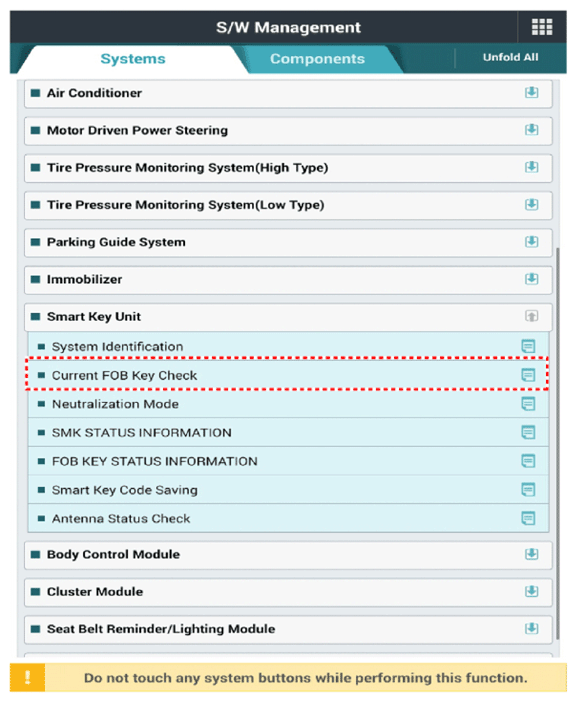

G12921364Courtesy of KIA MOTORS AMERICA, INC.

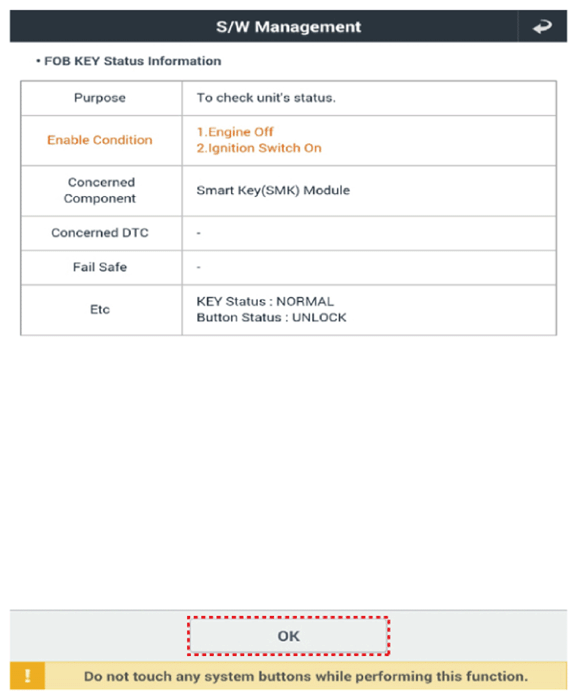

G12921365Courtesy of KIA MOTORS AMERICA, INC.

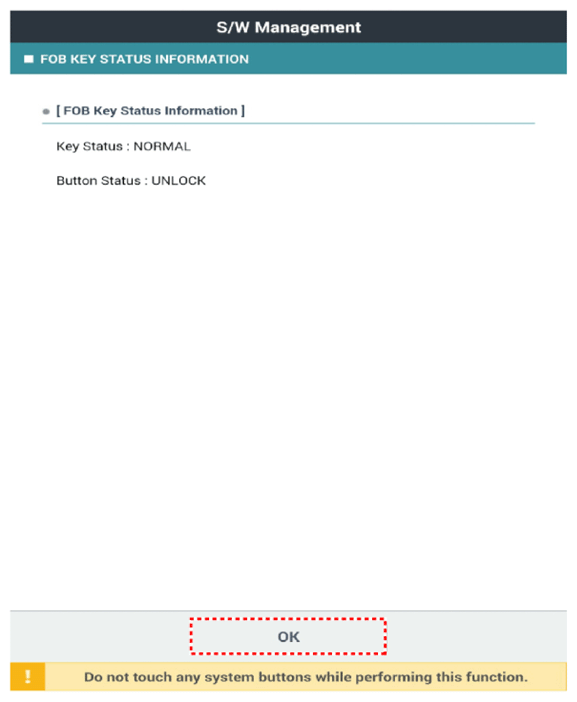

G12921366Courtesy of KIA MOTORS AMERICA, INC.
