Description & Operation: Description: Notes

• The sensor used is a thermistor (NTC) in which resistance changes with temperature variation.
• The TCM supplies about 5 voltage to the sensor; the output value changes with ATF temperature.

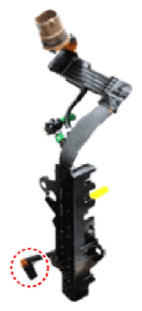

• Oil temperature sensor is installed on the valve body integrated with a solenoid valve harness.
