Cluster module variant coding

  1. Verify vehicle options and have VIN code in hand.
  2. Perform "CLU VARIANT CODING " in the "Vehicle S/W Management" with KDS.
  3. Check for DTCs in the system.

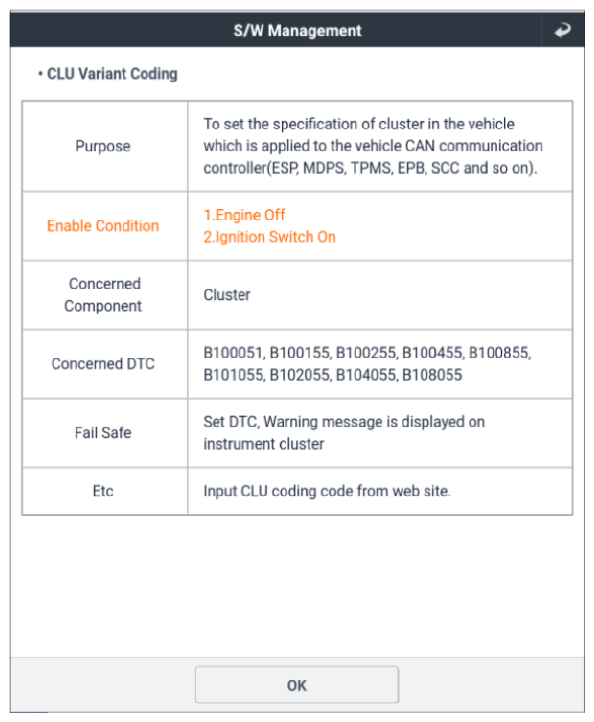

    G13367935Courtesy of KIA MOTORS AMERICA, INC.

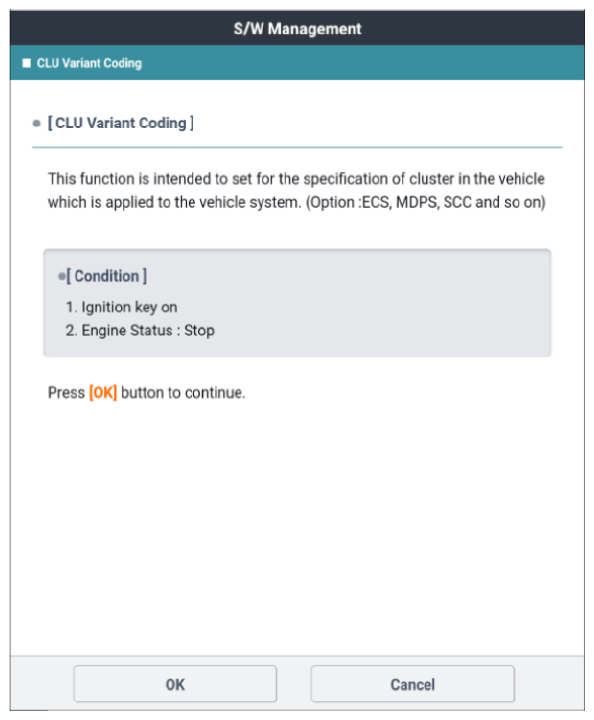

    G13367936Courtesy of KIA MOTORS AMERICA, INC.

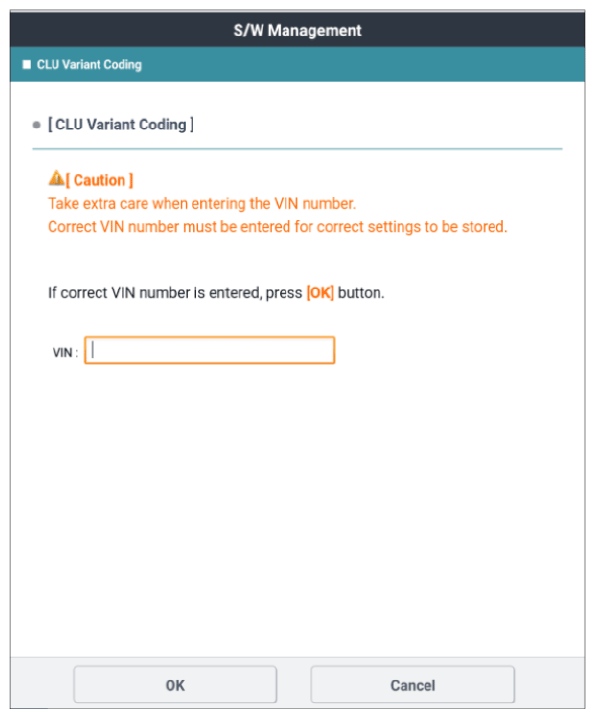

    G13367937Courtesy of KIA MOTORS AMERICA, INC.

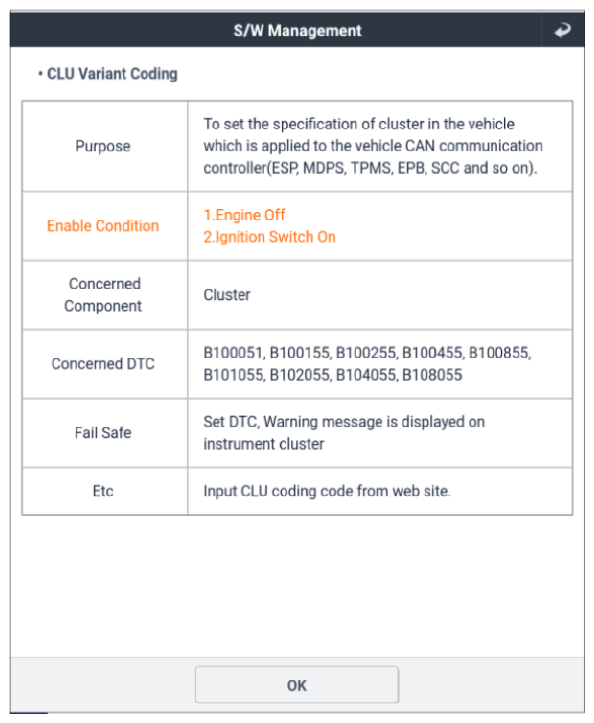

    G13367938Courtesy of KIA MOTORS AMERICA, INC.

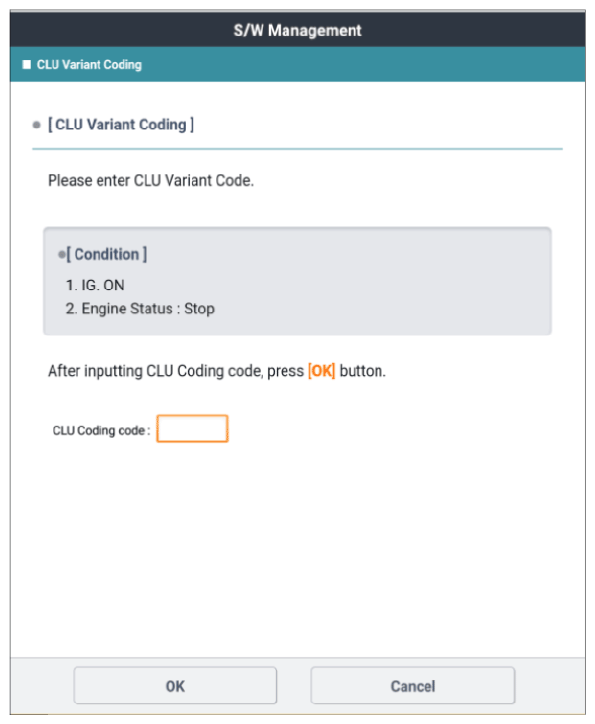

    G13367939Courtesy of KIA MOTORS AMERICA, INC.

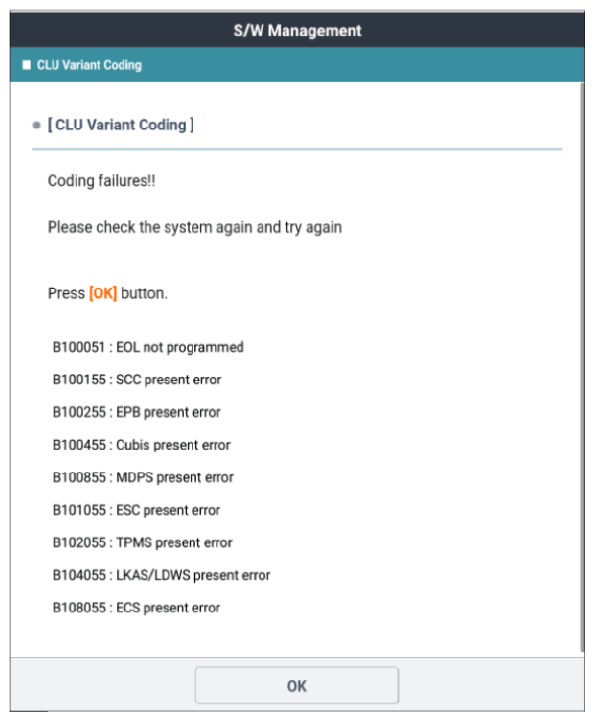

    G13367940Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the DTCs stored in the system as a present?

    YES

    1. Replace cluster module and perform "CLU VARIANT CODING " procedure in the "Vehicle S/W Management" with KDS again, and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    1. Go to "WIRING INSPECTION " procedure.
