Trunk Open Switch

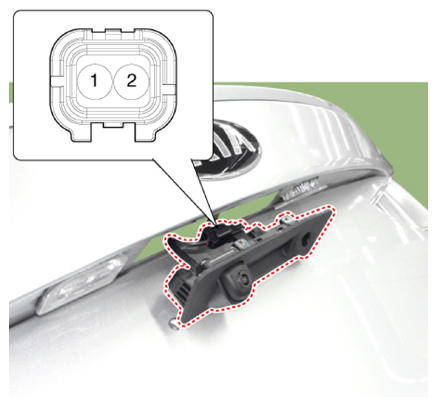

  1. Check for continuity between the trunk open switch terminals.
    G13364493Courtesy of KIA MOTORS AMERICA, INC.

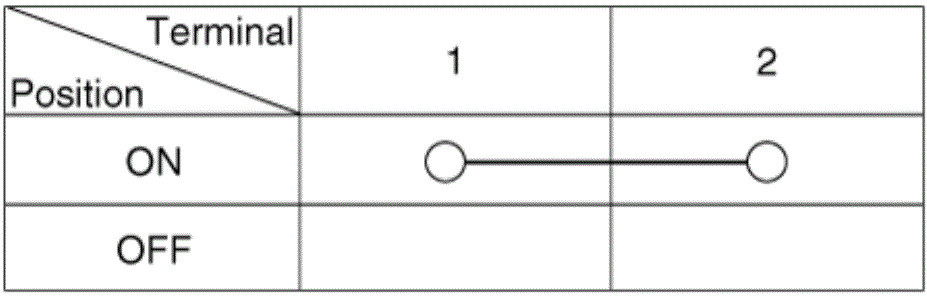

  2. If continuity is not as specified, inspect the switch.
    G13364494Courtesy of KIA MOTORS AMERICA, INC.
