Measuring Resistance

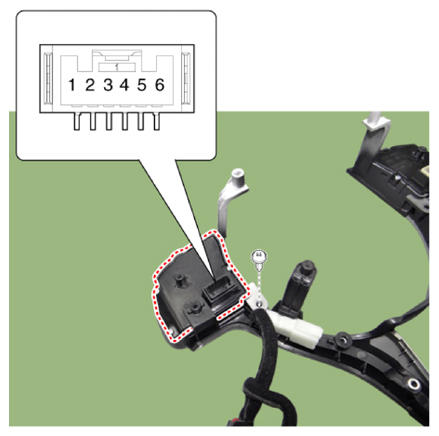

Disconnect the cruise control switch connector from the control switch.

Measure resistance between terminals on the control switch when each function switch is ON (switch is depressed).

G13361435

Courtesy of KIA MOTORS AMERICA, INC.

Function switch	Connector terminal	Resistance (kΩ) [±3%]
CANCEL	3-5	0.39
SET -	3-5	0.61
RES +	3-5	0.91
CRUISE	3-5	2.13
ASCC	3-5	3.63

If not within specification, replace switch.
