Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

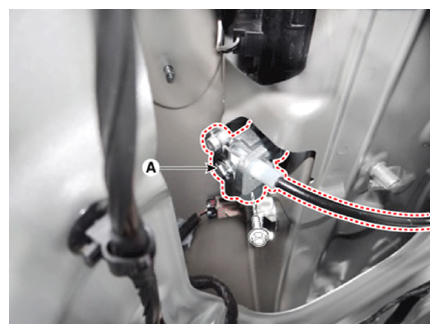

  3. Remove the trunk key set (A) after loosening the bolt.
    G13363885Courtesy of KIA MOTORS AMERICA, INC.

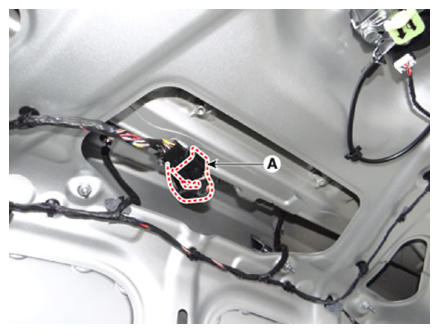

  4. Disconnect the back view camera connector (A).
    G13363886Courtesy of KIA MOTORS AMERICA, INC.

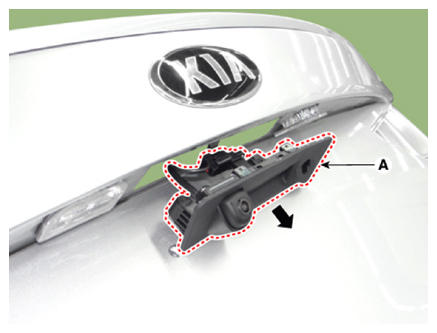

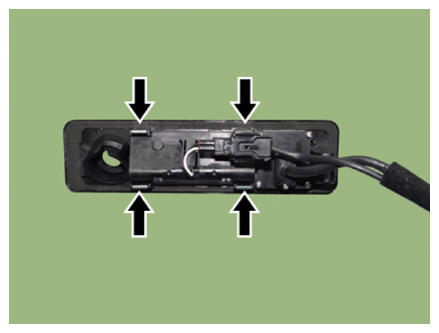

  5. Remove the back view camera assembly (A) after pressing the locking pin.
G13363887Courtesy of KIA MOTORS AMERICA, INC.
G13363888Courtesy of KIA MOTORS AMERICA, INC.
