Repair Procedures: Removal

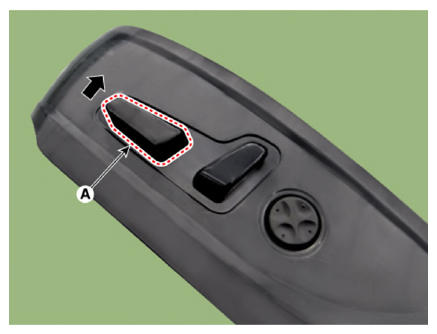

Before removing the driver side seat assembly, adjust to the full upwards position, by pushing the front height adjusting switch (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the negative (-) battery terminal
Remove the driver seat assembly.
(Refer to Body - "FRONT SEAT ASSEMBLY ")

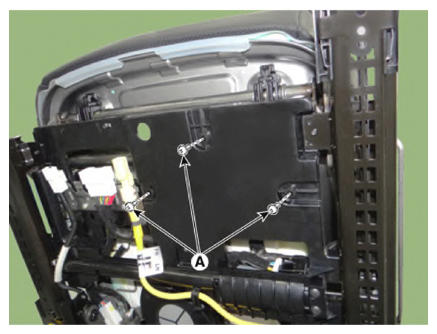

Loosen the IMS unit mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

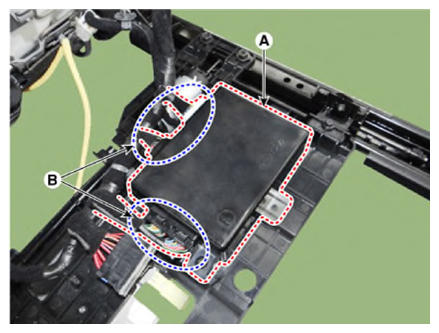

Disconnect the IMS module connectors (B) and then remove the IMS unit (A).

Courtesy of KIA MOTORS AMERICA, INC.
