Repair Procedures: Replacement

CAUTION: Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver or using a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
Be careful not to scratch the body surface.

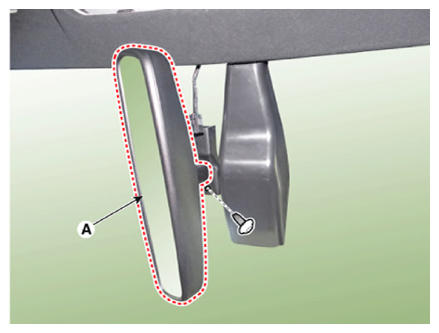

Remove the inside rear view mirror cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the inside rear view mirror connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
Push the ECM mirror base down to remove the ECM mirror assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Be careful not to scratch the windshield glass.
