[Assist Power Window Module (ADM, IMS)]

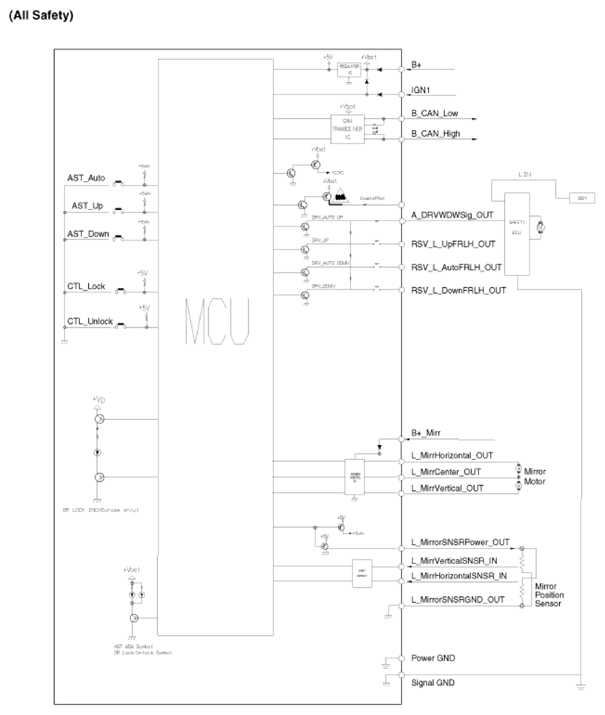

G13364339

Courtesy of KIA MOTORS AMERICA, INC.

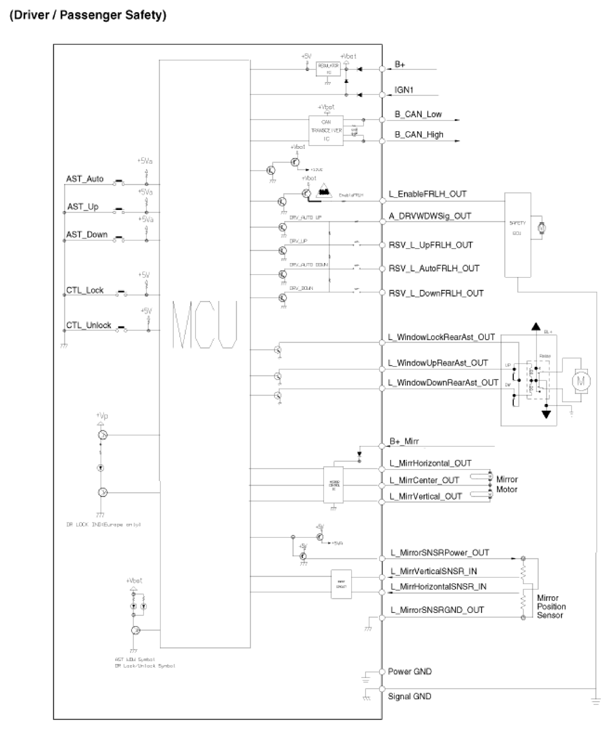

G13364340

Courtesy of KIA MOTORS AMERICA, INC.

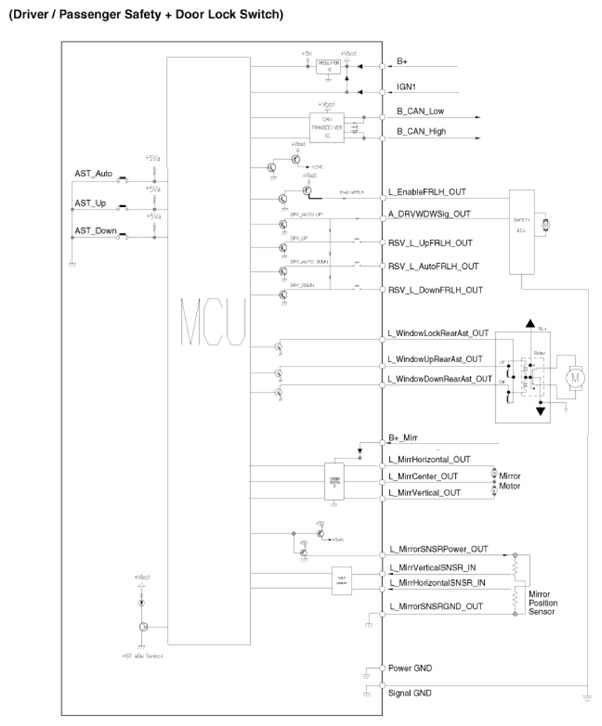

G13364341

Courtesy of KIA MOTORS AMERICA, INC.
