Schematic Diagrams
›
Circuit Diagram
›
Driver Power Window Switch
›

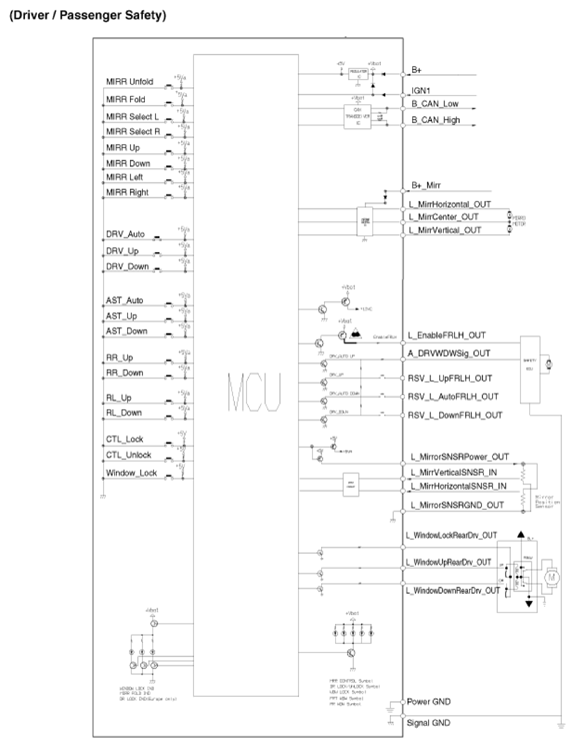

[Driver Power Window Module (DDM, IMS)]

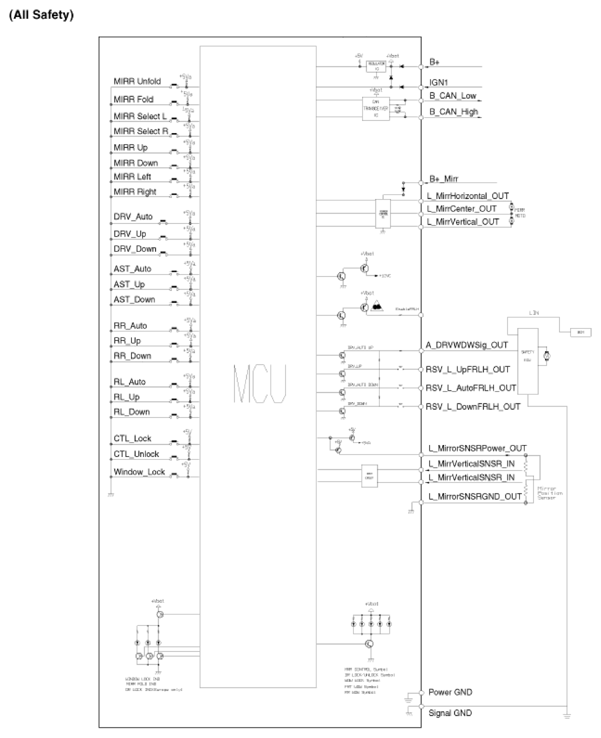

[Driver Power Window Module (DDM, IMS)]
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
