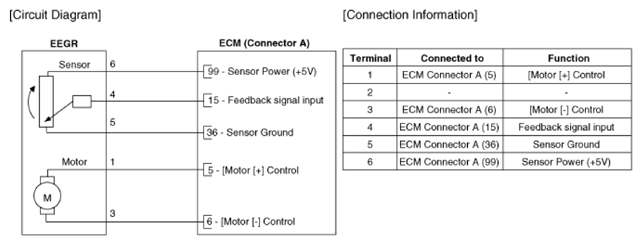

Home › Kia › 2020 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System (PHEV) › Electric EGR Control Valve › Schematic Diagrams › Circuit Diagram › Notes
