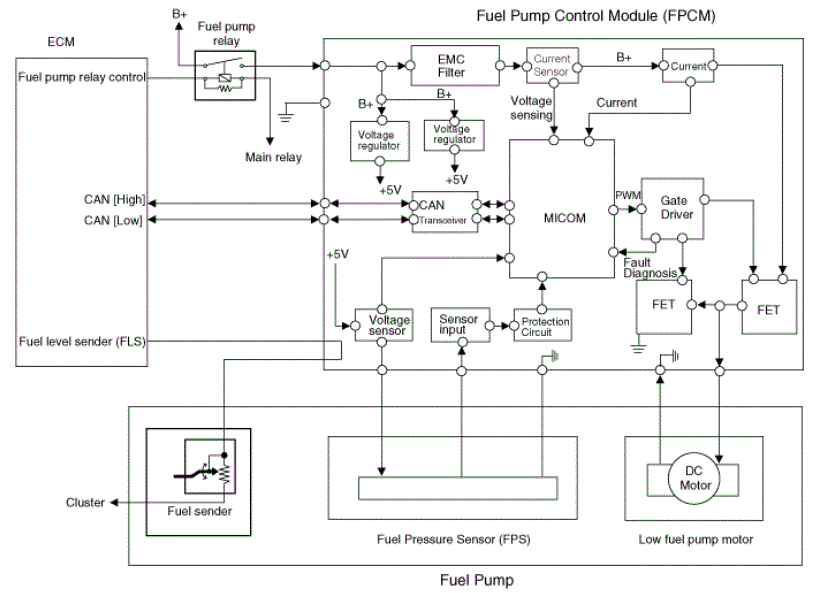

Home › Kia › 2020 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Engine Performance › Fuel Delivery › Fuel Delivery System (PHEV) › Fuel Pump Control Module (FPCM) › Schematic Diagrams › Circuit Diagram
