Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the rear bumper cover.
(Refer to Body - "REAR BUMPER COVER ")

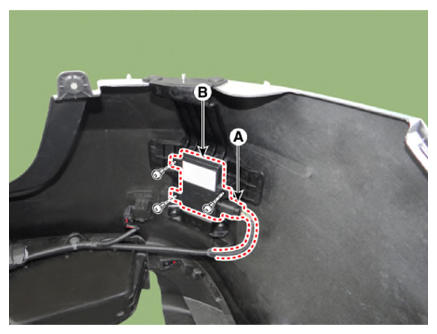

Disconnect the BSD connector (A) and then remove the BSD unit (B) after loosening the screws.

CAUTION: Be careful when removing the blind spot detection unit. The bracket may break off from the bumper.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the BSD unit, be careful not to damage the bracket of BSD.
