Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk lid trim.

    (Refer to Body - "TRUNK LID TRIM ")

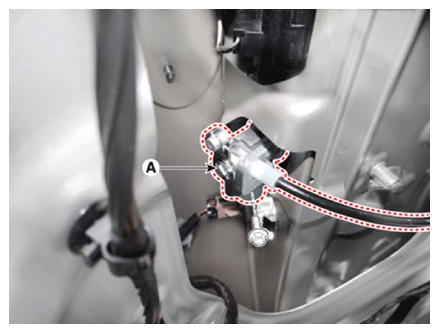

  3. Remove the trunk key set (A) after loosening the bolt.
    G13390176Courtesy of KIA MOTORS AMERICA, INC.

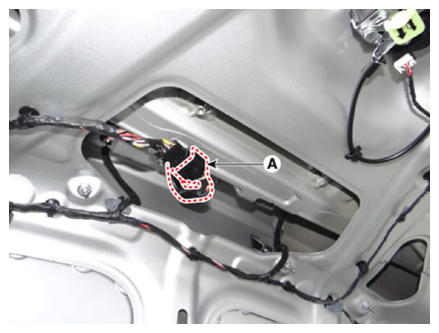

  4. Disconnect the back view camera connector (A).
    G13390177Courtesy of KIA MOTORS AMERICA, INC.

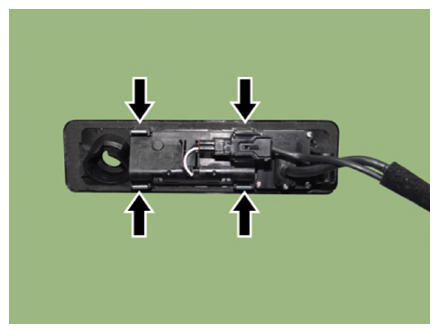

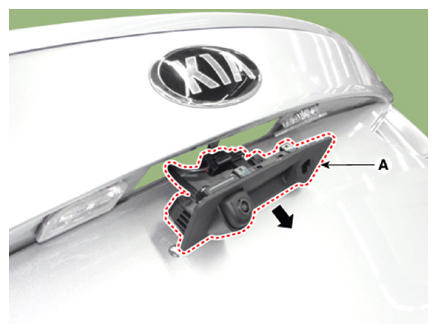

  5. Remove the back view camera assembly (A) after pressing the locking pin.
G13390178Courtesy of KIA MOTORS AMERICA, INC.
G13390179Courtesy of KIA MOTORS AMERICA, INC.
