Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

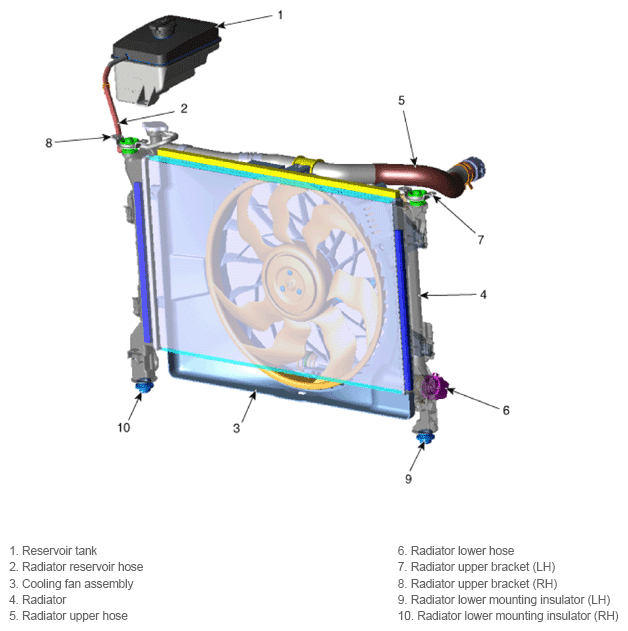

G13387375Courtesy of KIA MOTORS AMERICA, INC.

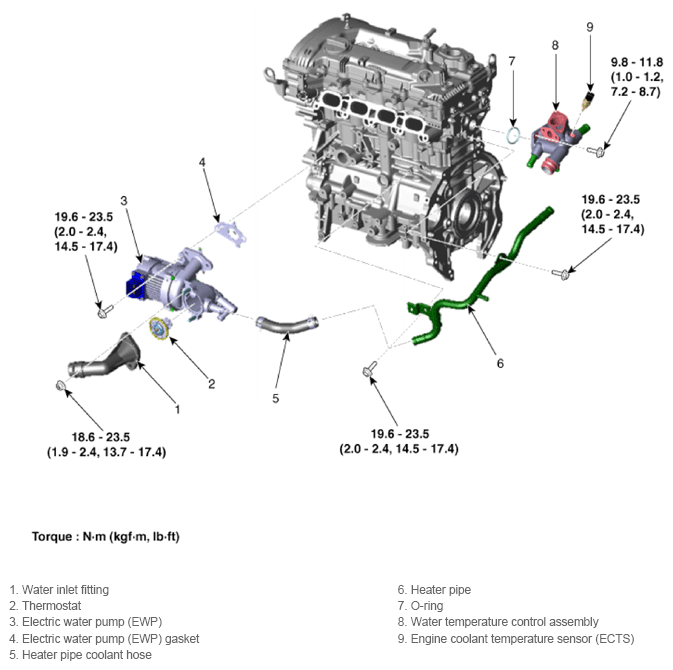

Fig 1: Cooling System Components With Torque Specification
G13387376Courtesy of KIA MOTORS AMERICA, INC.
