Components & Components Location: Components

WARNING: This page is about a different variant/trim than selected.

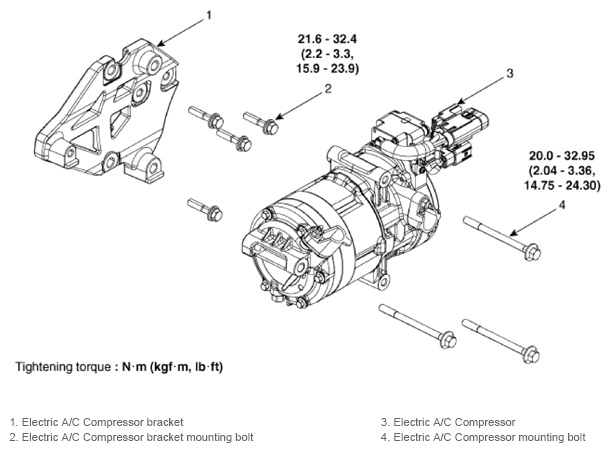

Fig 1: Electric A/C Compressor Components Location With Torque Specification
G13390975Courtesy of KIA MOTORS AMERICA, INC.

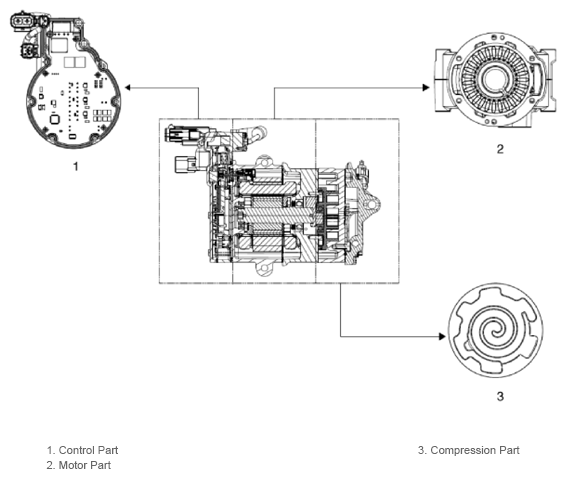

G13390976Courtesy of KIA MOTORS AMERICA, INC.
