Section 23 (Automatic Transaxle Control System (HEV))
›
Transaxle Control Module (TCM)
›
Schematic Diagrams
›

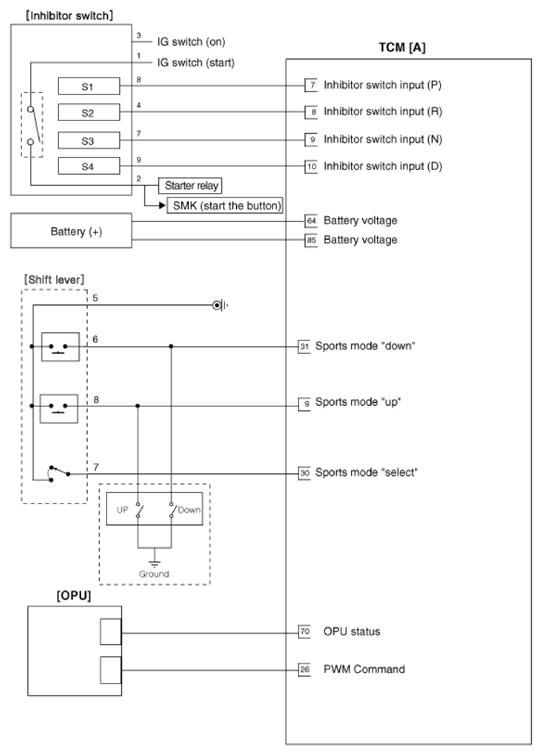

Circuit Diagram

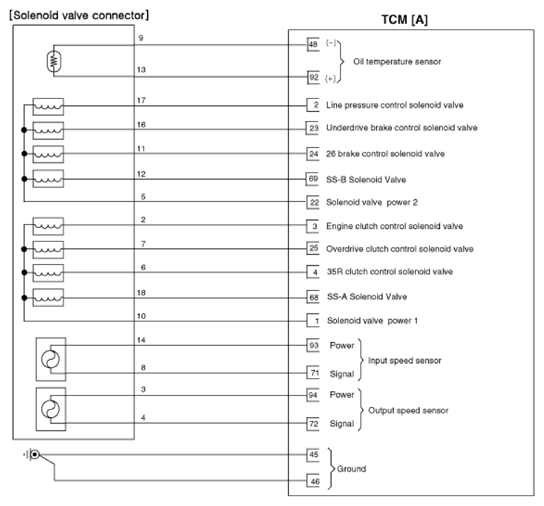

Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
