Repair Procedures: Inspection

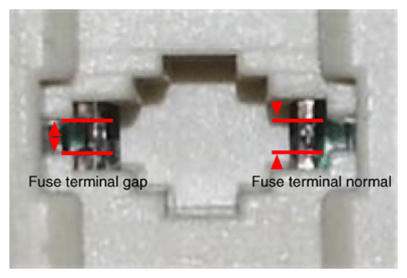

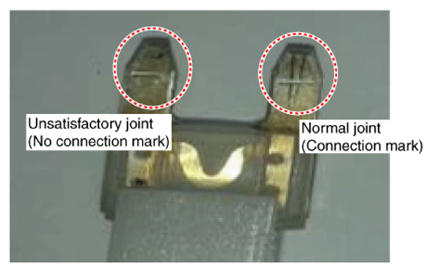

Mount the test fuse to the switch fuse and relay fuse part to confirm a normal joint fit.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

1. Analyze KDS data and confirm if there is anything wrong with the stop lamp switch.
   1. Connect the KDS to the self-diagnosis connector.
   2. Turn the spark switch on
   3. Step on the brake pedal.
   4. Inspect the "brake switch" category that displays the "sensor data" KDS.)

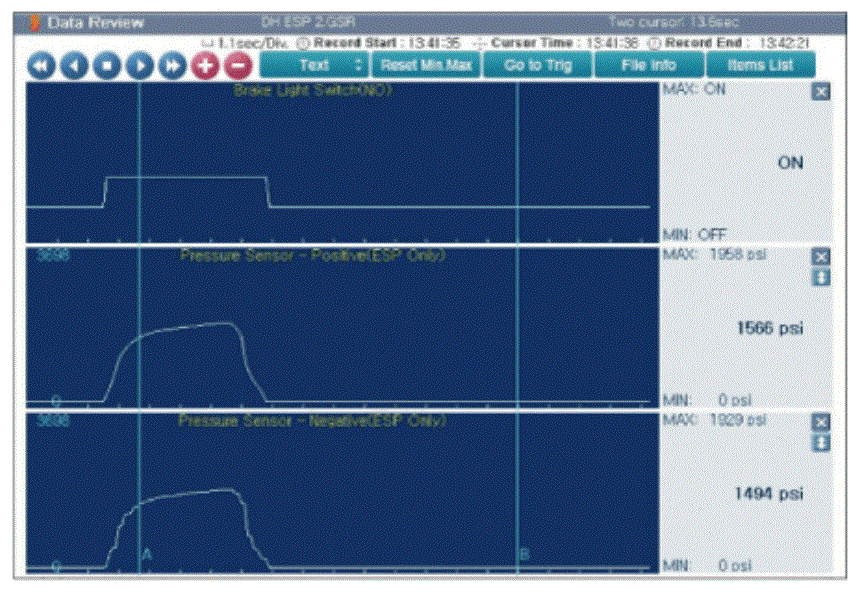

      Normal waveform:  The pressure sensor signal value will change according to the brake ON/OFF switch.

      Courtesy of KIA MOTORS AMERICA, INC.

Check to see whether or not each connector has been damaged, or terminal surge, or incomplete connection has taken place

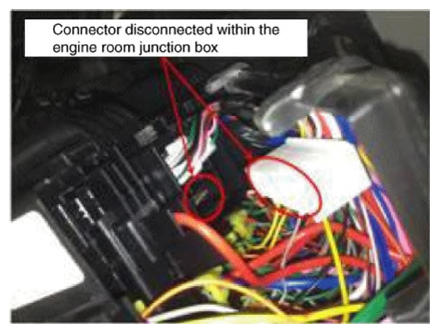

[Engine room junction box]

Courtesy of KIA MOTORS AMERICA, INC.

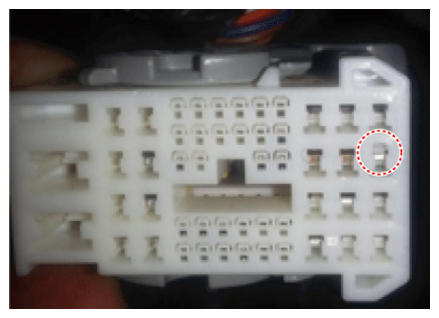

[Stop signal electronic module]

Courtesy of KIA MOTORS AMERICA, INC.

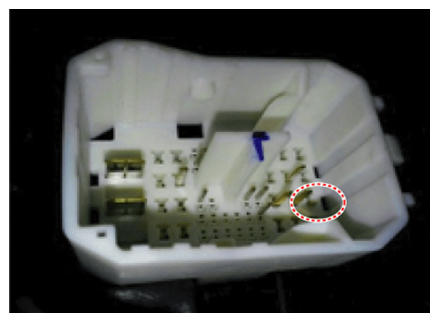

[ABS/VDC control module]

Courtesy of KIA MOTORS AMERICA, INC.

Connect probe to each terminal wire and confirm oscilloscope waveform.

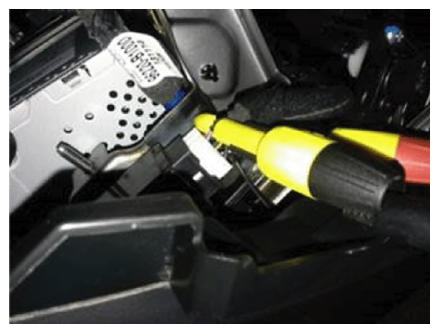

[Stop lamp switch input/output]

Courtesy of KIA MOTORS AMERICA, INC.

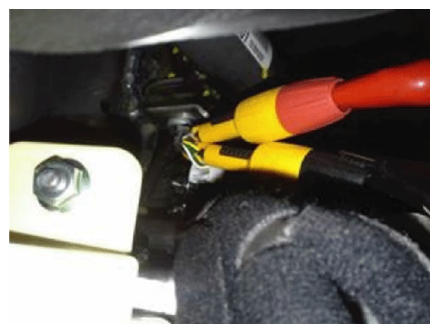

[Stop signal electronic module input/output]

Courtesy of KIA MOTORS AMERICA, INC.

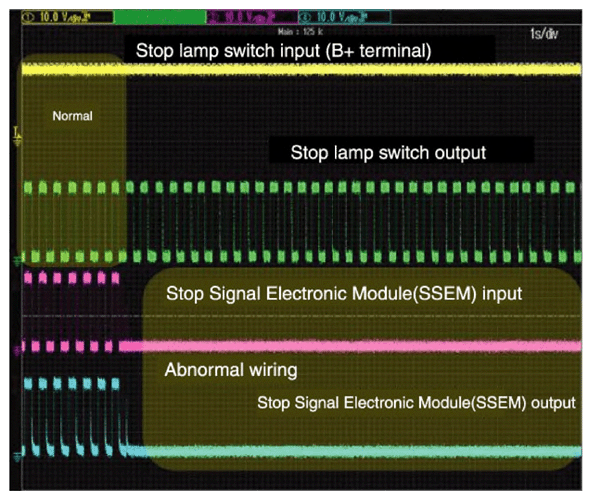

[Oscilloscope waveform screen]

Courtesy of KIA MOTORS AMERICA, INC.
