Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the center fascia upper panel.
(Refer to Body - "CENTER FASCIA PANEL ")

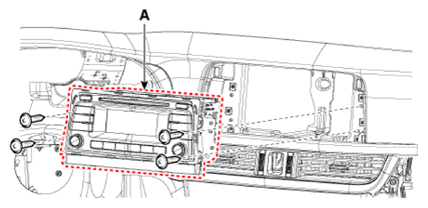

Remove the audio head unit (A) after loosening the screws.

Courtesy of KIA MOTORS AMERICA, INC.

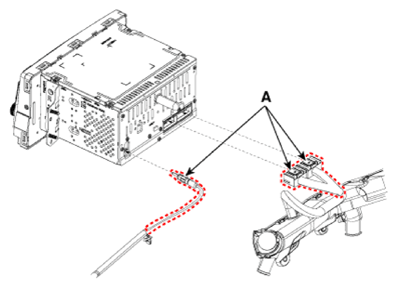

Remove the audio head unit after disconnecting the connectors and antenna cable (A).

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When the compact disc cannot not be ejected, do not force out of the head unit.
