Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Disconnect the negative (-) battery terminal.
- Remove the smart key unit.
(Refer to Smart Key System - "SMART KEY UNIT ")

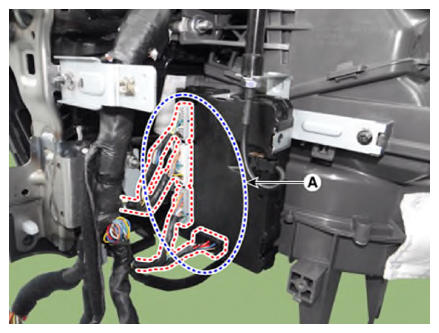

- Disconnect the body control module connectors (A).

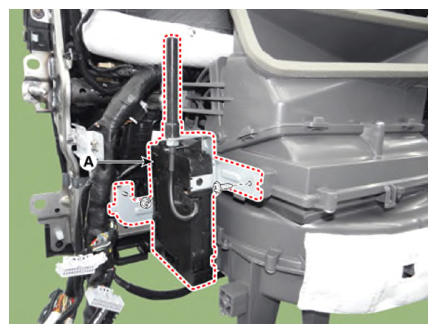

- Remove the body control module (A) after loosening the mounting nut and screw.
