Smart Key Status Check

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.

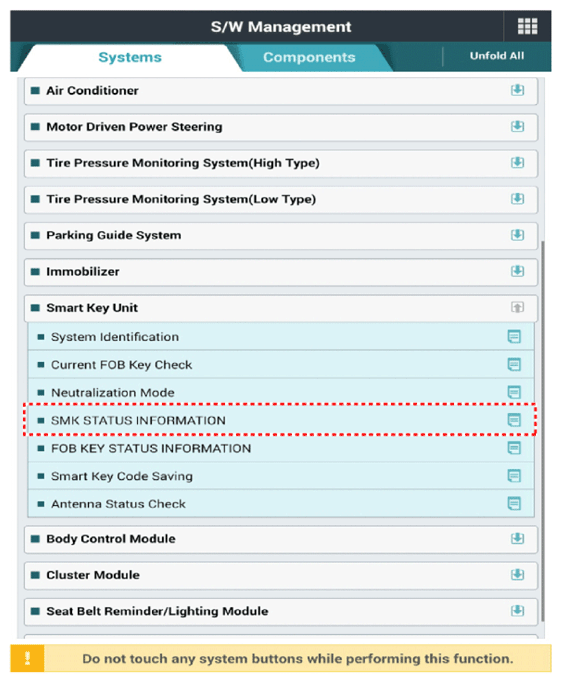

  2. After IG ON, select the "SMK STATUS INFO".
    G13390807Courtesy of KIA MOTORS AMERICA, INC.

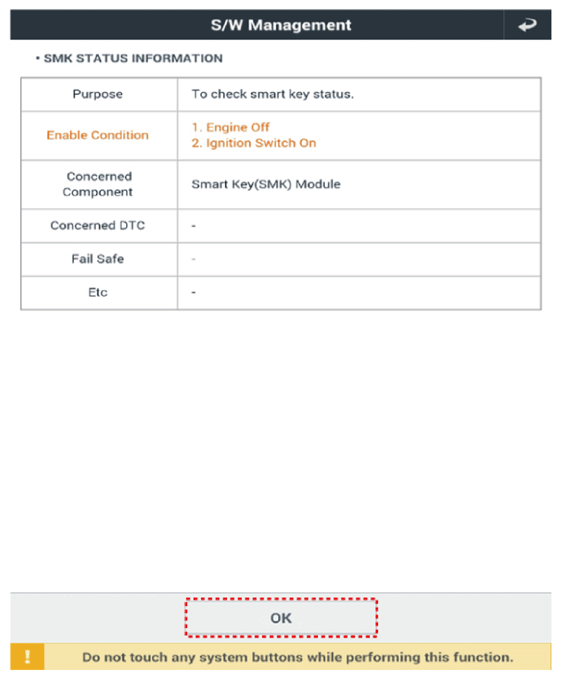

    G13390808Courtesy of KIA MOTORS AMERICA, INC.

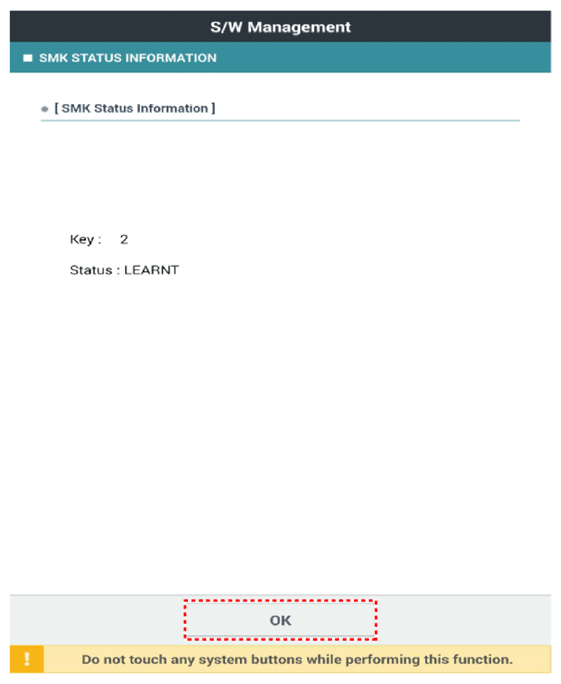

    G13390809Courtesy of KIA MOTORS AMERICA, INC.
