Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

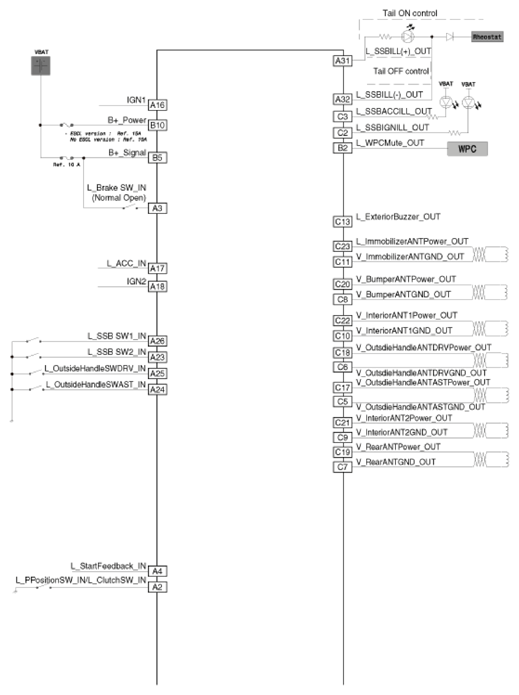

G13390769Courtesy of KIA MOTORS AMERICA, INC.

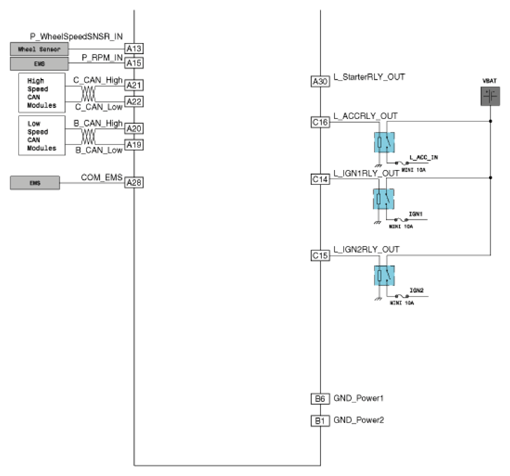

G13390770Courtesy of KIA MOTORS AMERICA, INC.
