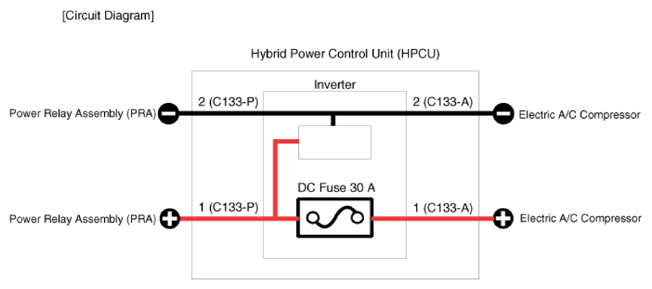

Home › Kia › 2020 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Hybrid/Electric Powertrain › Electric Converters and Controllers › Hybrid Control System (PHEV) › DC Fuse › Schematic Diagrams › Circuit Diagram › Notes
