Resolver Calibration

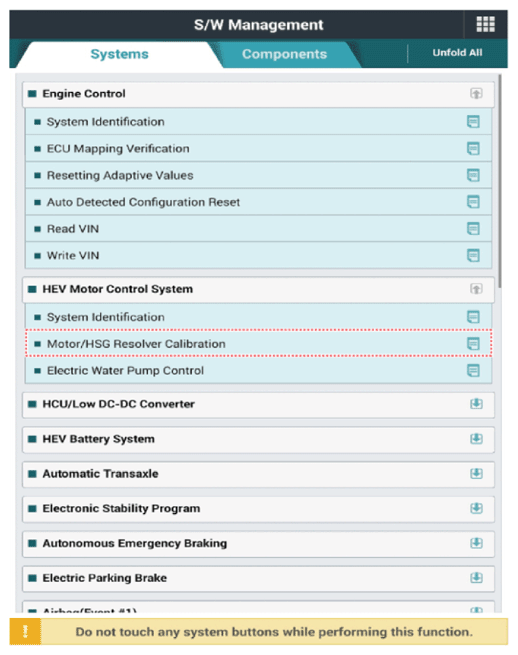

Perform the resolver calibration using the KDS after replacing or reinstalling the below components.

• Hybrid Drive Motor installation
• Hybrid Starter Generator (HSG) installation
• Motor Control Unit (MCU) replacement
