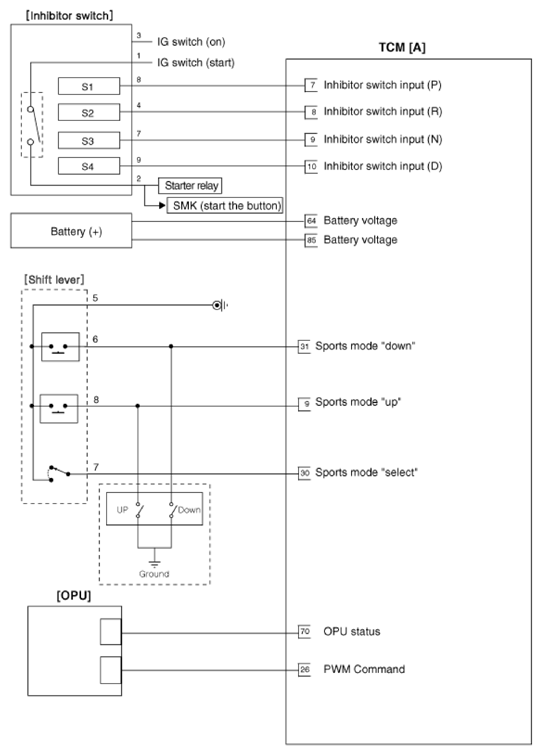

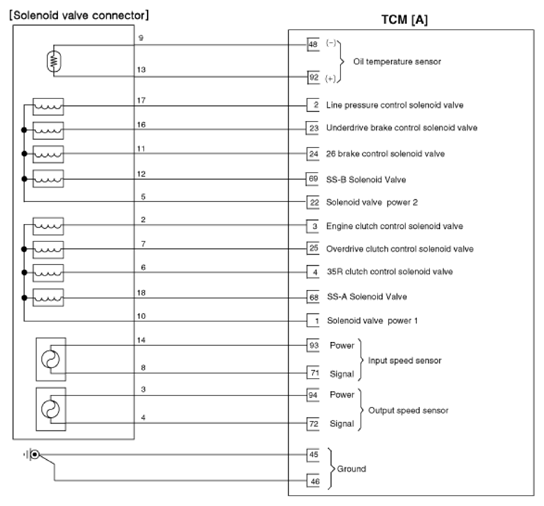

Home › Kia › 2020 › Optima Plug-In Hybrid EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System (PHEV) › Transaxle Control Module (TCM) › Schematic Diagrams › Circuit Diagram
