Home › Kia › 2020 › Optima S › Repair and Diagnosis › Accessories & Equipment › Memory Modules › Integrated Memory System (IMS) (Except HEV) › Schematic Diagrams › Components

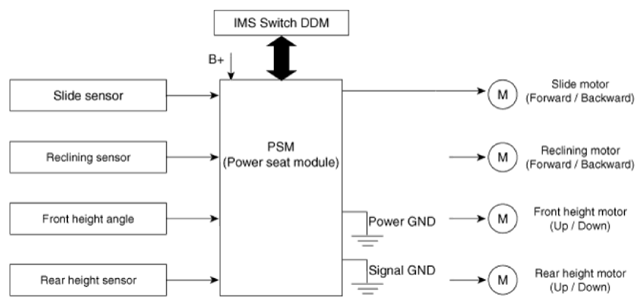

Schematic Diagrams: Components

G12920898Courtesy of KIA MOTORS AMERICA, INC.
