Repair Procedures: Removal

NOTE: Note that the SST (Part No: 09392-1Y100 or 09392-2H100) is useful when removing the heated oxygen sensor.

[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

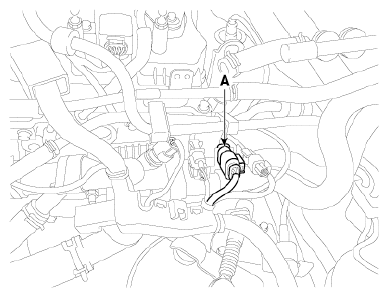

G12932794Courtesy of KIA MOTORS AMERICA, INC.

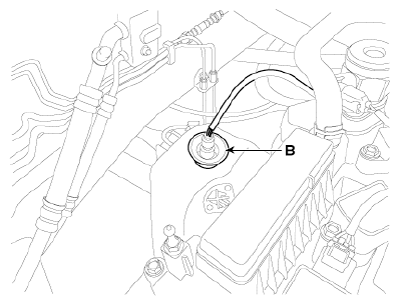

G12932795Courtesy of KIA MOTORS AMERICA, INC.

[Bank 1/Sensor 2]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A), and then remove the sensor (B).

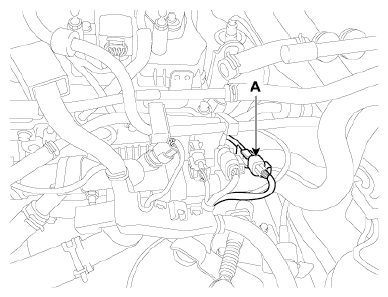

G12932796Courtesy of KIA MOTORS AMERICA, INC.

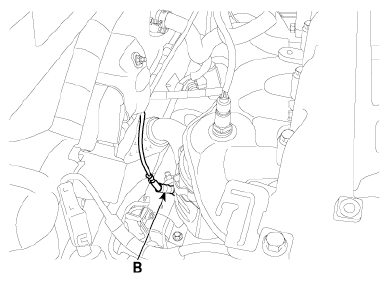

G12932797Courtesy of KIA MOTORS AMERICA, INC.
