Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.
Fig.1 to 5
G13485017Courtesy of KIA MOTORS AMERICA, INC.

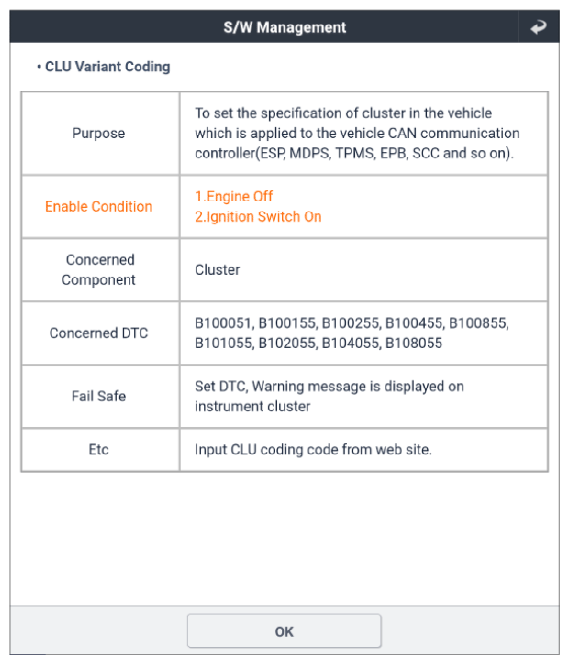

G13485018Courtesy of KIA MOTORS AMERICA, INC.

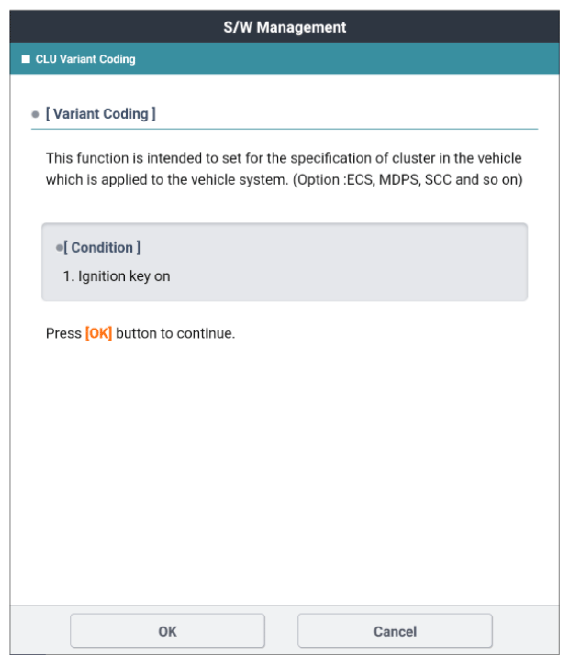

G13485019Courtesy of KIA MOTORS AMERICA, INC.

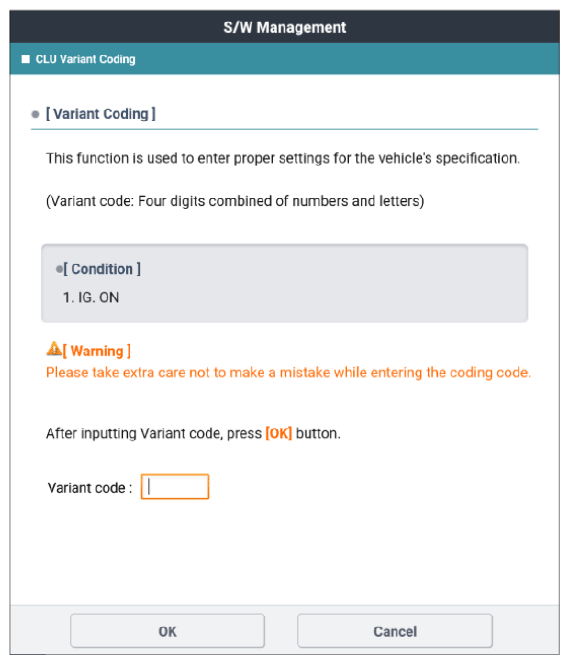

G13485020Courtesy of KIA MOTORS AMERICA, INC.
G13485021Courtesy of KIA MOTORS AMERICA, INC.
