Vehicle S/W Management

WARNING: This page is about a different car, the 2021 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS.

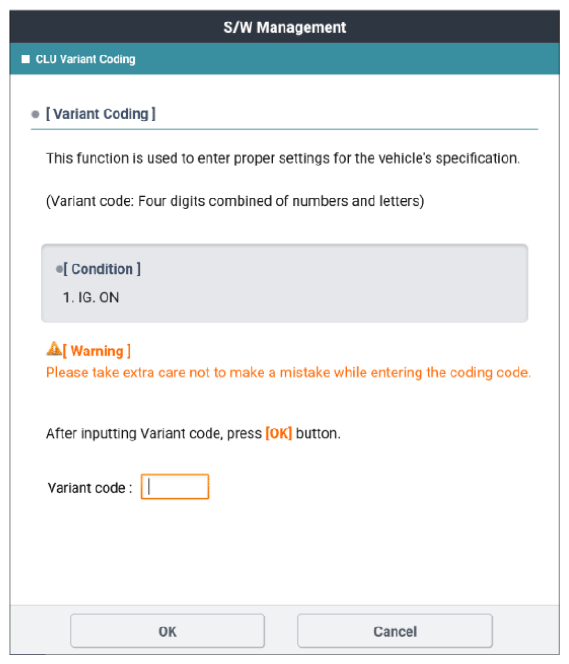

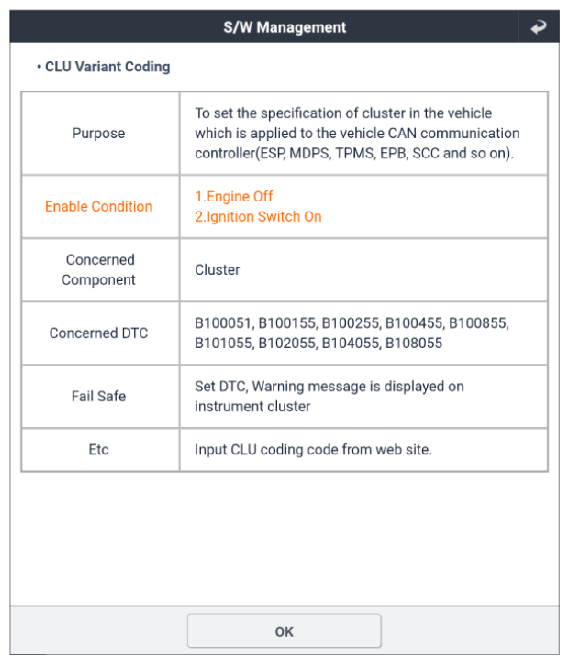

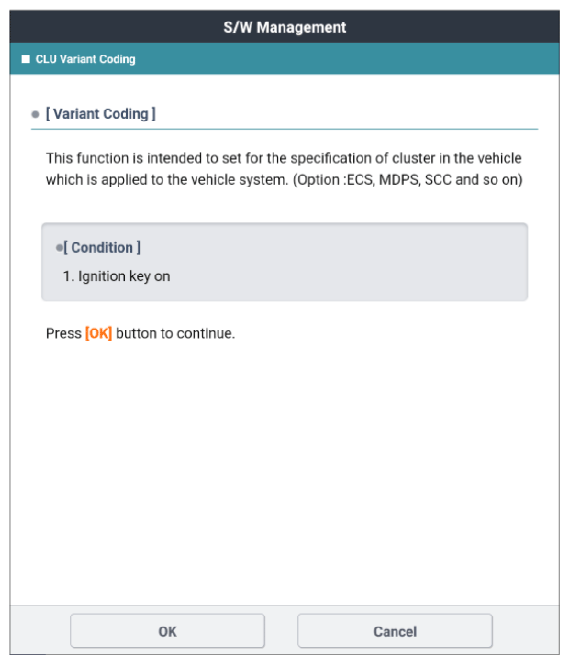

Fig.1 to 5
G13485063Courtesy of KIA MOTORS AMERICA, INC.
G13485064Courtesy of KIA MOTORS AMERICA, INC.
G13485065Courtesy of KIA MOTORS AMERICA, INC.
G13485066Courtesy of KIA MOTORS AMERICA, INC.
G13485067Courtesy of KIA MOTORS AMERICA, INC.
