Removal And Installation

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative terminal.

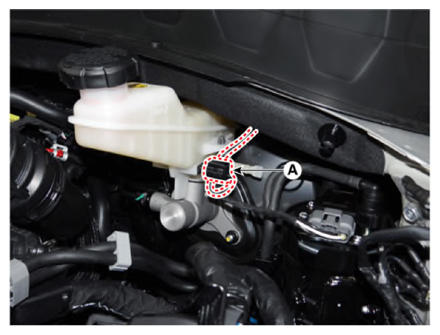

Disconnect the brake fluid level sensor connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

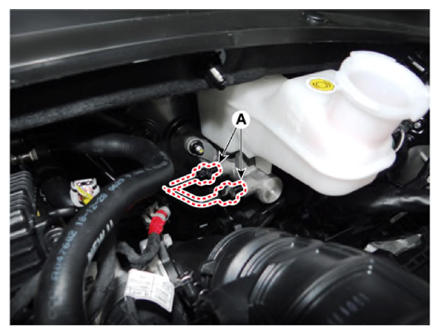

Separate the brake tube (A) from the master cylinder by loosening the tube flare nut.
Tightening torque:

ABS: 12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

ESC: 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m, 13.7 - 16.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

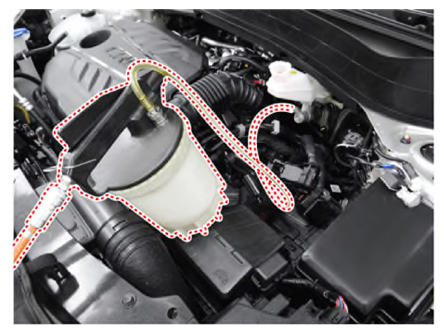

Remove the brake fluid from the master cylinder reservoir with a syringe.

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not spill brake fluid on the vehicle as it may damage the paint. If brake fluid comes in contact with the paint, wash off immediately with water.
Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

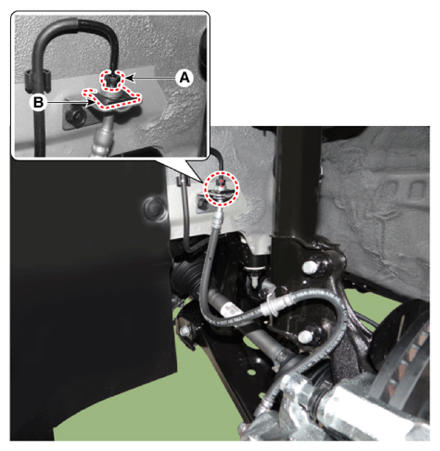

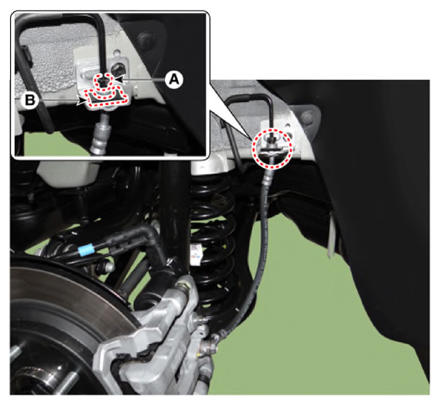

Loosen the brake tube flare nut (A), and then remove the brake hose clip (B).
Tightening torque:

12.7 - 16.7 N.m (1.3 - 1.7 kgf.m, 9.4 - 12.3 lb.ft)

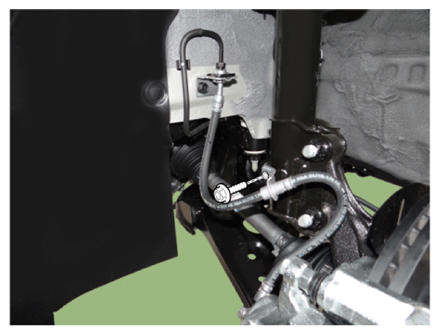

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the brake hose bracket (A) by loosening the bolt.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

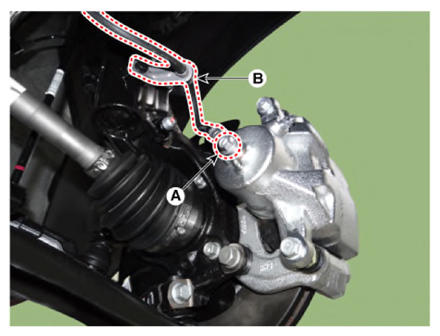

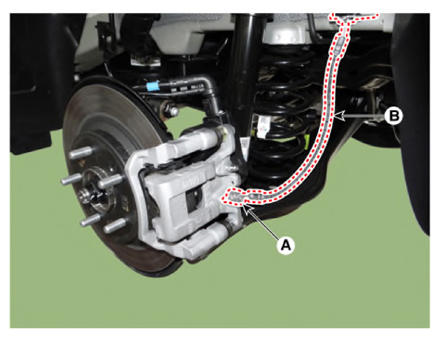

Remove the brake hose (A) from the brake caliper by loosening the bolt.
Tightening torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb.ft)

[Front]

Courtesy of KIA MOTORS AMERICA, INC.

[Rear]

Courtesy of KIA MOTORS AMERICA, INC.

Install in the reverse order of removal.

NOTE:

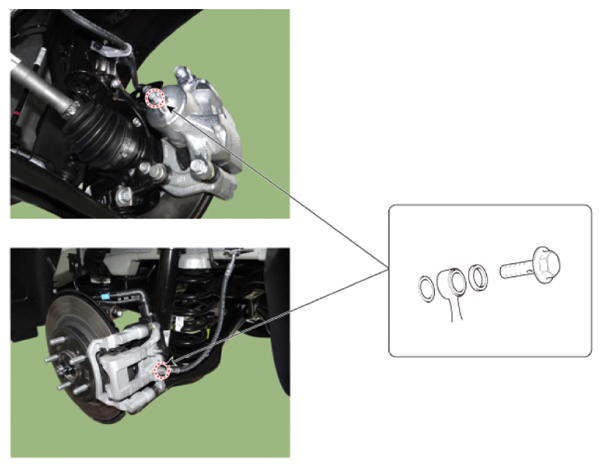

Use a new washers (A) whenever installing.

Courtesy of KIA MOTORS AMERICA, INC.

After installation, bleed the brake system.
(Refer to Brake system - "BRAKE BLEEDING PROCEDURES ")
Check and clean any spilled brake fluid.
