KDS Data Analysis
WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
- Analyze KDS data and check for any abnormality with the stop lamp switch.
- Connect the KDS to the self-diagnosis connector.
- Turn the spark switch on.
- Step on the brake pedal.
- Inspect the "brake switch" category that displays the "sensor data" KDS.

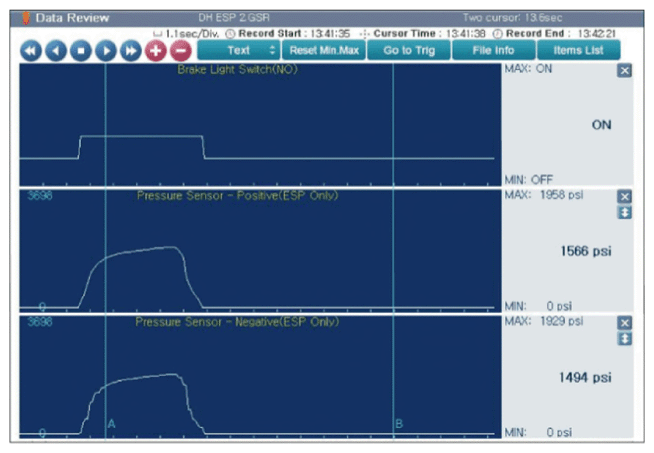

Normal waveform: The pressure sensor signal value will change according to the brake ON/OFF switch.
