Repair Procedures: Removal

WARNING: This page is about a different car, the 2022 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front wheel and tire.
(Refer to Suspension System - "WHEEL ")

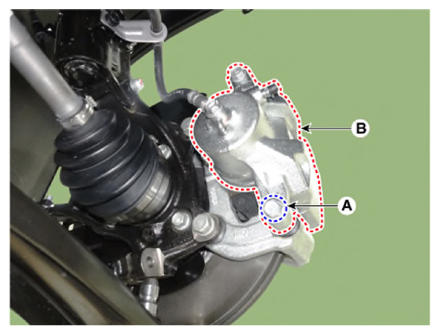

Loosen the guide rod bolt (A) and then pivot the caliper body (B) up out of the way.
Tightening torque:

21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

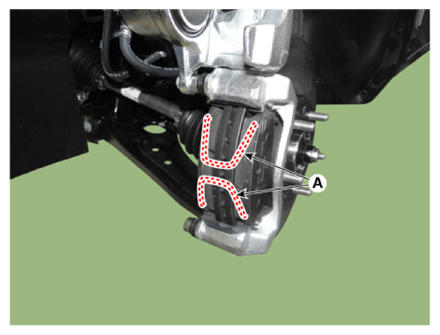

Remove the pad return springs (A).

Courtesy of KIA MOTORS AMERICA, INC.

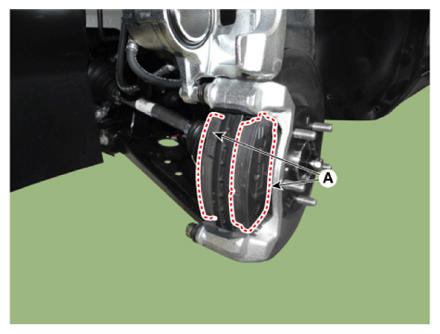

Remove the brake pads (A).

Courtesy of KIA MOTORS AMERICA, INC.

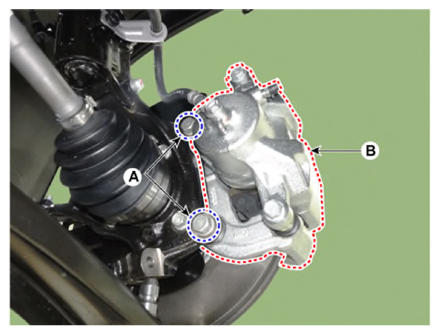

Remove the caliper carrier (B) by loosening the bolts (A).
Tightening torque:

83.4 - 98.1 N.m (8.5 - 10.0 kgf.m, 61.5 - 72.3 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Fix the caliper assembly with a wire.

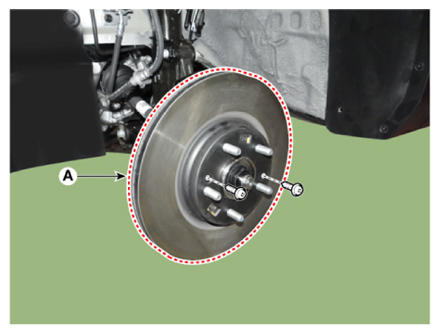

Remove the brake disc (A) after loosening the screws.
Tightening torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb.ft, 43.4 - 52.1 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
