Vehicle S/W Management

WARNING: This page is about a different car, the 2023 Kia Seltos. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: * Perform the "Variant Coding" and "Inspection/correction of the front-radar mounting angle (FCA/SCC)" on "Vehicle S/W Management", once SCC/FCA ECU is replaced.
* Do not select the [C1] in "Inspection/correction of the front-radar mounting angle (FCA/SCC)", unless you have proper equipment to perform inline procedure.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Perform "VEHICLE S/W MANAGEMENT " of concerned component with KDS/GDS.
 Fig.1 to 10
G13485978Courtesy of KIA MOTORS AMERICA, INC.

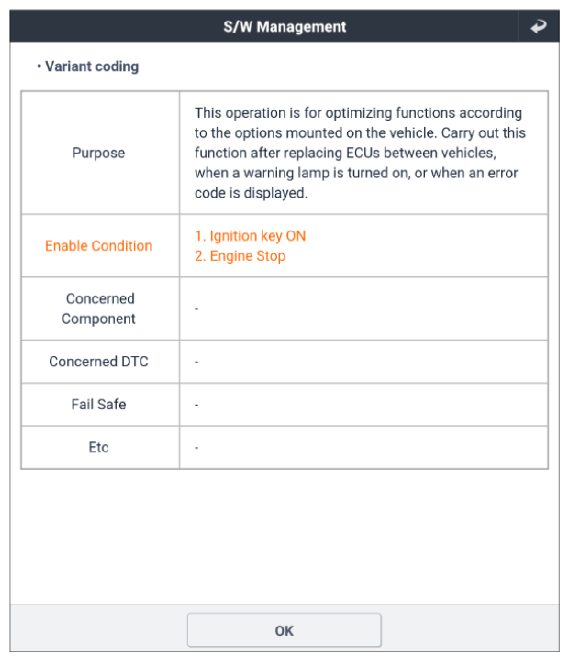

G13485979Courtesy of KIA MOTORS AMERICA, INC.

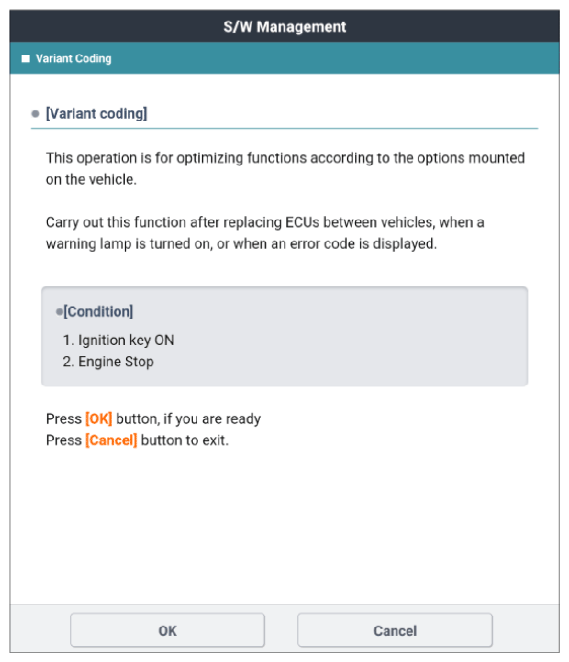

G13485980Courtesy of KIA MOTORS AMERICA, INC.
G13485981Courtesy of KIA MOTORS AMERICA, INC.

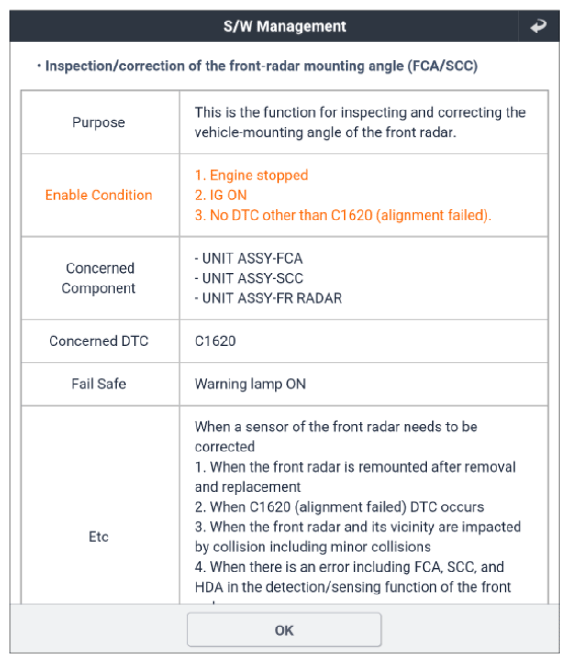

G13485982Courtesy of KIA MOTORS AMERICA, INC.

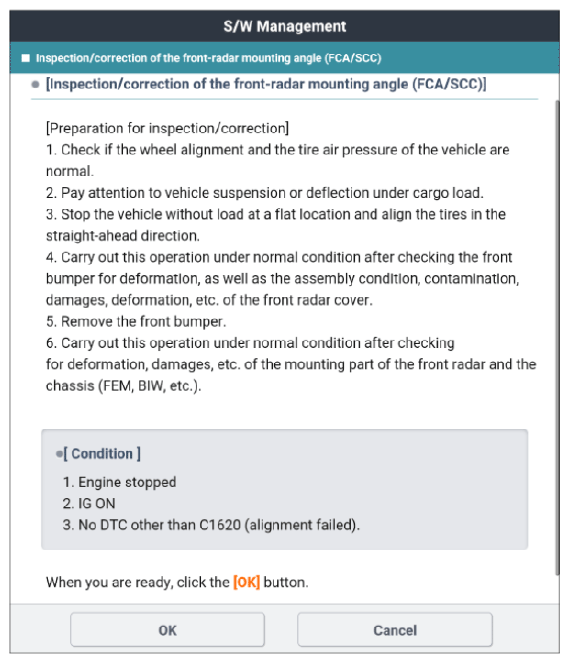

G13485983Courtesy of KIA MOTORS AMERICA, INC.

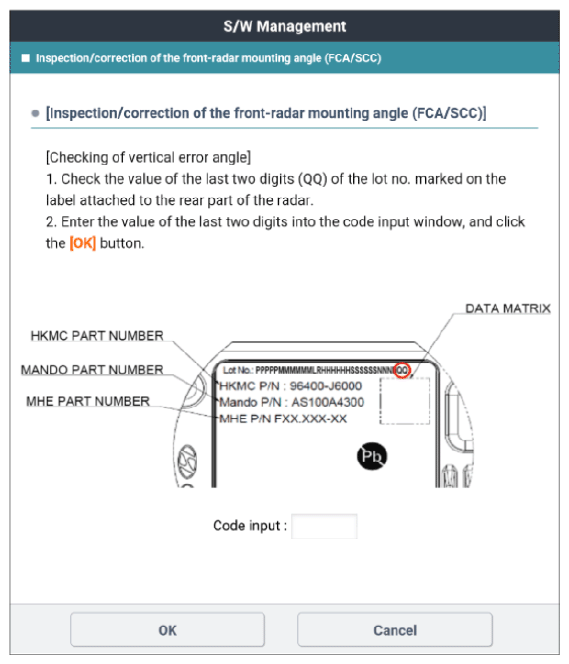

G13485984Courtesy of KIA MOTORS AMERICA, INC.

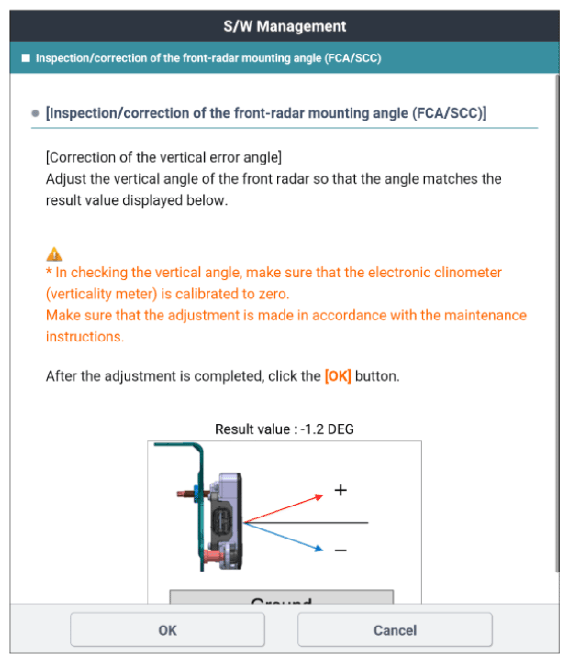

G13485985Courtesy of KIA MOTORS AMERICA, INC.

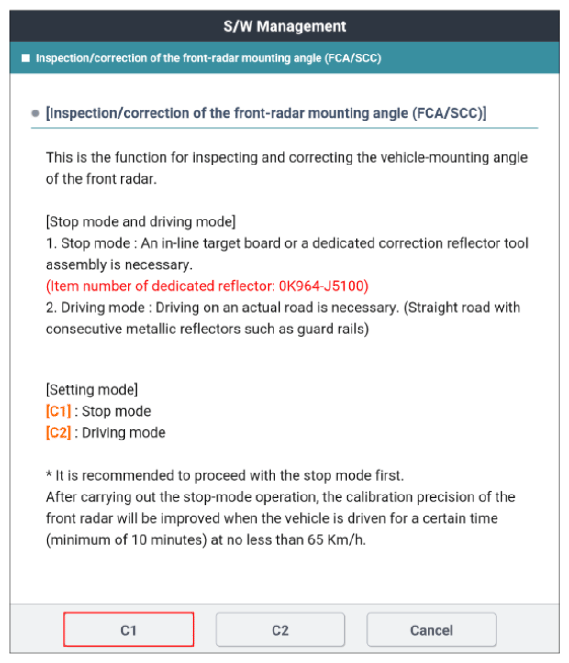

G13485986Courtesy of KIA MOTORS AMERICA, INC.

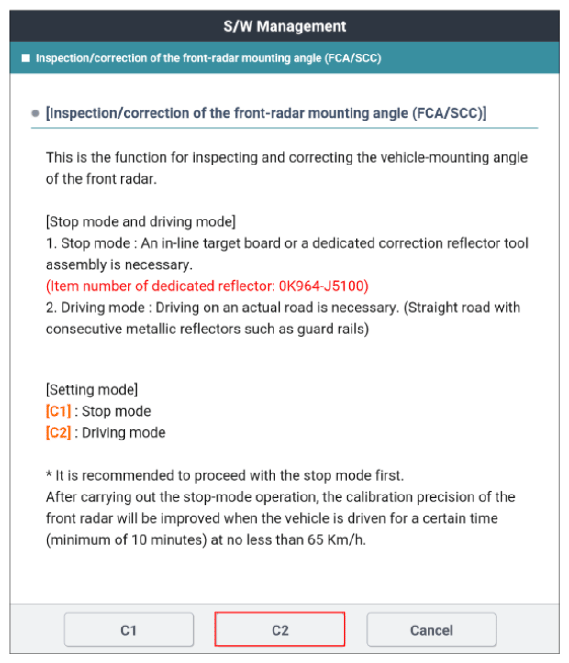

G13485987Courtesy of KIA MOTORS AMERICA, INC.
