Section 73 (Brake System)
›
Brake Booster
›
Components And Components Location
›
Components
Components And Components Location: Components
WARNING:
This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

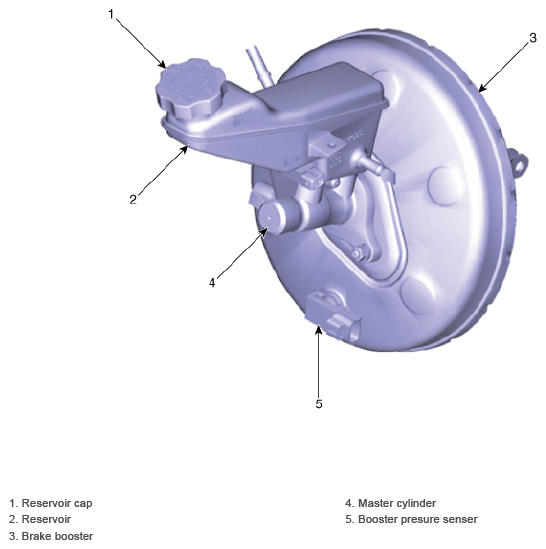

Fig 1: Locating Brake Booster Components
Courtesy of HYUNDAI MOTOR AMERICA
