Components And Components Location: Components

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

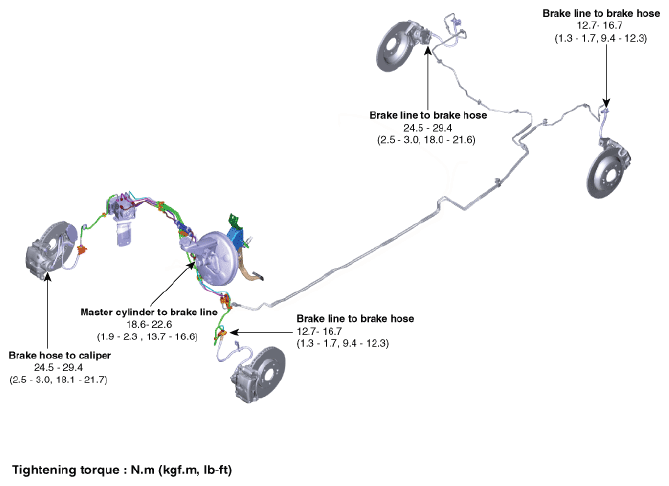

Fig 1: Brake Line Components With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA
