Repair Procedures: Replacement

WARNING: This page is about a different car, the 2020 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat assembly
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Carefully remove the rear door body side weatherstrip.
Carefully remove the tail gate weatherstrip.
Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
Remove the rear transverse trim.
(Refer to Interior Trim - "REAR TRANSVERSE TRIM ")

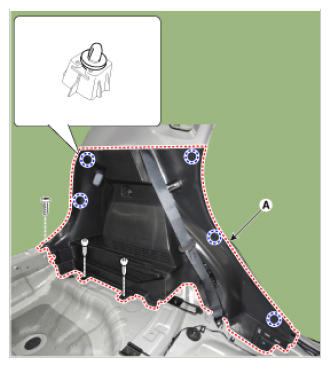

After loosening the mounting bolts and clip, remove the luggage side trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
