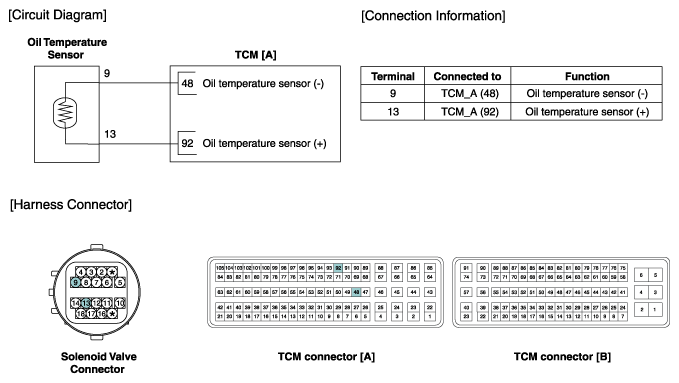

Home › Kia › 2020 › Optima S › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.4L (Except HEV) › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
