Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ")

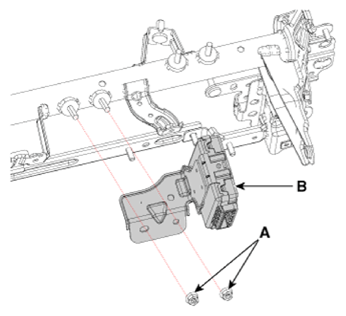

Remove the ASCC ECU (B) after disconnecting the connector and nuts (A).

Courtesy of KIA MOTORS AMERICA, INC.
