Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery (-) terminal.
  2. Remove the front bumper cover.

    (Refer to "FRONT BUMPER COVER ")

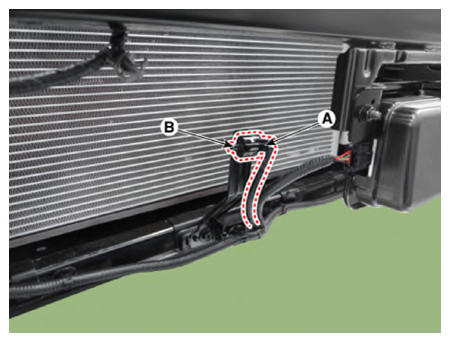

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
G12922345Courtesy of KIA MOTORS AMERICA, INC.
