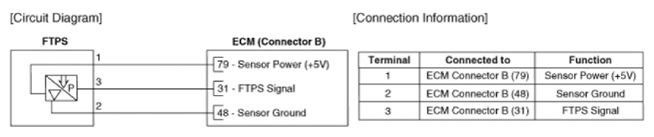

Home › Kia › 2020 › Optima SX › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L (Except HEV) › Fuel Tank Pressure Sensor (FTPS) › Schematic Diagrams › Circuit Diagram
