Repair Procedures: Inspection
- Connect the KDS on the Data Link Connector (DLC).

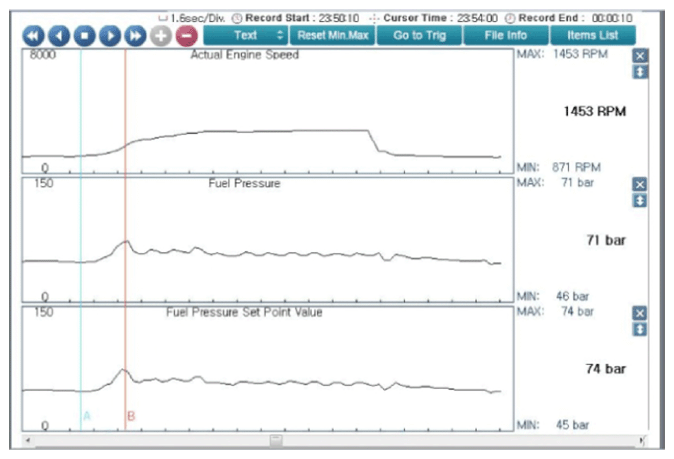

- Measure the output voltage and fuel pressure of the RPS at idle and various engine speed.
RPS OUTPUT VOLTAGE SPECIFICATION
| Pressure |
Output Voltage (V) [Vref=5V] |
| bar |
[MPa (kgf/cm2
, psi)] |
| 0 |
0 (0, 0) |
0.5 |
| 140 |
14 (142, 2031) |
2.5 |
| 280 |
28 (286, 4061) |
4.5 |
