Kia
›
2020
›
Rio LX
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Audio Remote Control
›
Schematic Diagrams
›

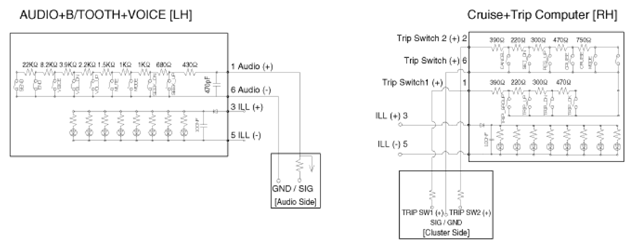

Circuit Diagram
›
Notes
Circuit Diagram: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
