Circuit Diagram
›
Notes

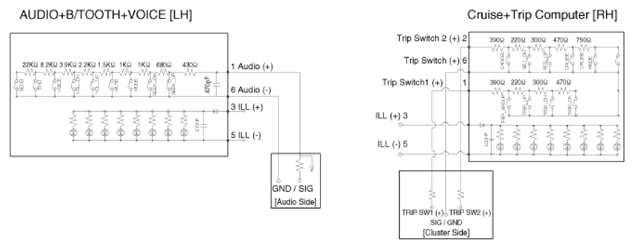

Circuit Diagram: Notes
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
