FOB Status Check

  1. Connect the cable of KDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "FOB KEY STATUS INFO".

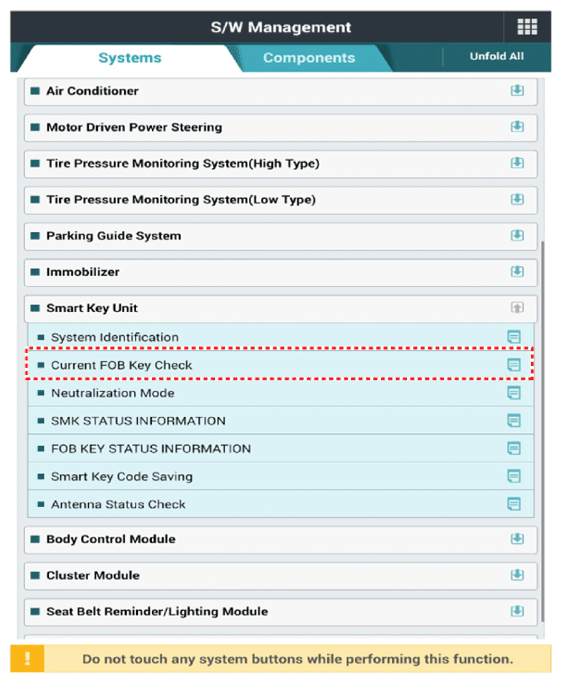

    G13417751Courtesy of KIA MOTORS AMERICA, INC.

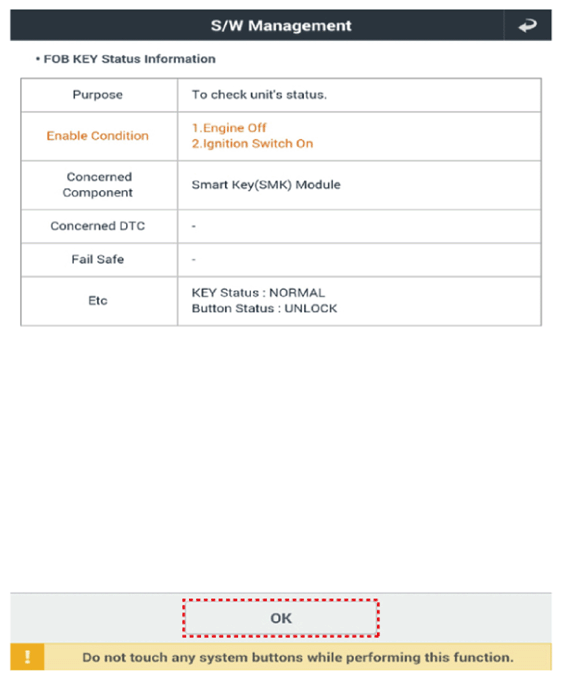

    G13417752Courtesy of KIA MOTORS AMERICA, INC.

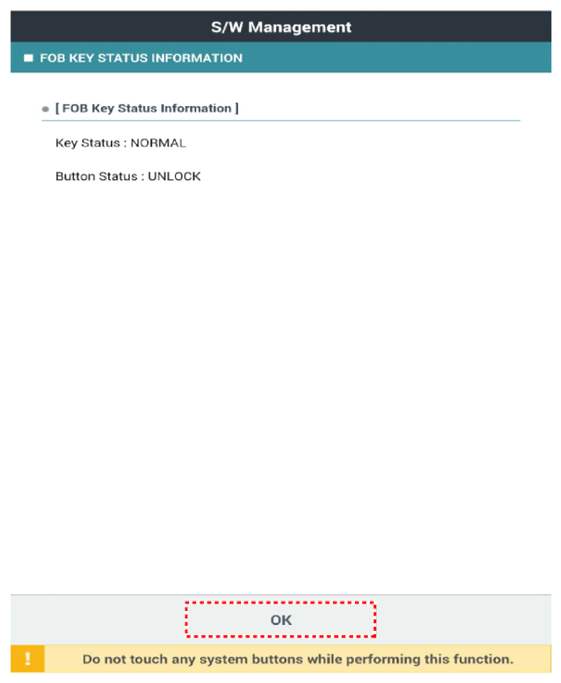

    G13417753Courtesy of KIA MOTORS AMERICA, INC.
