Repair Procedures: Inspection

  1. Disconnect the key warning switch connector (A) and ignition switch connector (B) from the steering column.

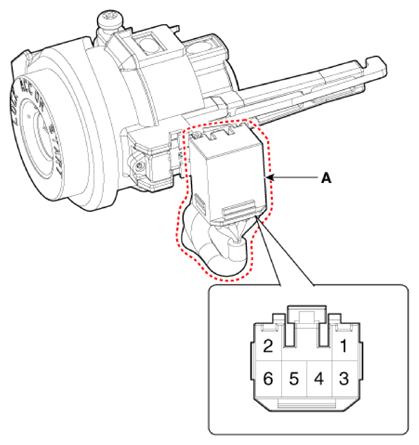

    G13417362Courtesy of KIA MOTORS AMERICA, INC.

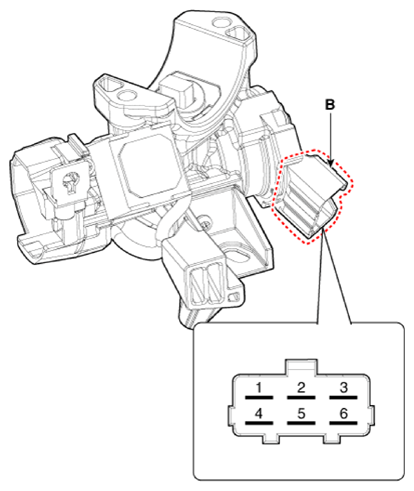

    G13417363Courtesy of KIA MOTORS AMERICA, INC.
  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.

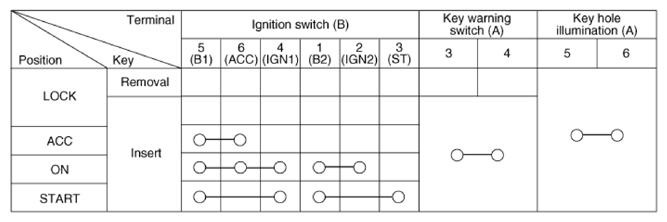

    G13417364Courtesy of KIA MOTORS AMERICA, INC.
