Repair Procedures: Removal
- Remove the engine room under cover.
(Refer to Engine And Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Drain the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")

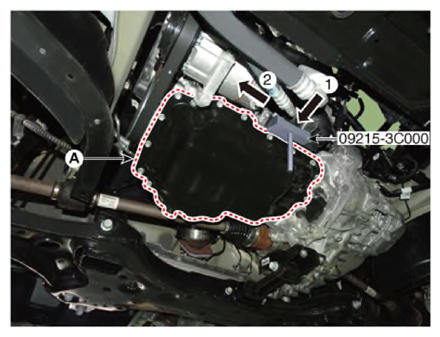

- Using the SST (09215-3C000) and remove the oil pan (A).
NOTE:
Insert the SST between the oil pan and the ladder frame by tapping it with a plastic hammer in the direction of arrow.
After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
After tapping the SST with a plastic hammer along the direction of arrow around more than 2/3 edge of the oil pan, remove it from the ladder frame.
CAUTION:
Do not turn over the SST abruptly without tapping. It be result in damage of the SST.
